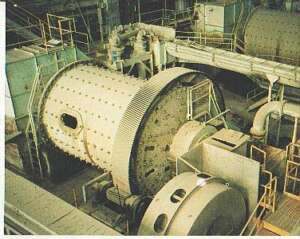

1268402 - MILL, BALL, CONTN, 10'5'' X 14'9'', NI-HARD, 1070HP, A-CHALMERS [1]

  • MFD.BY:Allis Chalmers
  • DATE MFD:1960 approx.
  • TYPE:Continuous Ball Mill
  • DIAMETER:10'5''
  • LENGTH:14'9''
  • MAT'L.CONSTRN-SHELL:CS, 1-1/2" thick approx.
  • MAT'L.CONSTRN-JACKET:NA
  • MATLS.CONSTRN-LINER:NI Hard bolted
  • SHELL-TYPE:Welded, bolted ends, pedestal support, babbit bearings.
  • JACKET-TYPE:NA
  • MEDIA:CS. 4" balls, 48,000# approx. Extra.

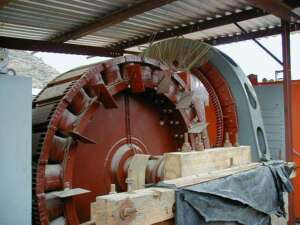

  • DRIVEN BY:1070HP 3/60/6900V, 28pole synchronous. 257rpm. (Convertible to 4000V, $2000est.)
  • DRIVEN VIA:Bullgear & Pinion. 26" wide face helical cut gear, (274T/20T) Falk grid type clutchless coupling.
  • CAPACITY:20TPH to 325M approx.
  • PRIOR SVC:Used untill 1973 approx.
  • COMMENTS:Continuous trunnion overflow grate discharge. Currently dissassembled, body sandblasted and painted, bullgear split/removed for shipment. Spare motor available, dissassembled and stator rewound, extra $25,000. Available for immediate delivery. Condition v
  • SHIPPING SIZE-W X H X L:12'W X 12'H X 20'L
  • APPROX. WEIGHT-LBS:100000#
  • QUANTITY:1
