DRIVEN BY:2300HP, 3/60/4000V, 180rpm approx. 250V Excitation voltage. Refurbished replacement motor starter and controls available extra, original not available.

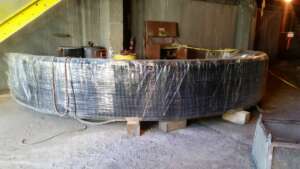

DRIVEN VIA:Pinion is single helical cut gear, connected to the extended drive motor shaft and directly meshing with bolted-split design Bullgear, via air clutch. 13.7RPM fixed drum speed approx, CW rotation from feed end. Trunnions use split Babbit Sleeve brgs, 60"d
CAPACITY:50-100tph approx. Capacity depending on product characteristics, ball size and size reduction range.
PRIOR SVC:Ores

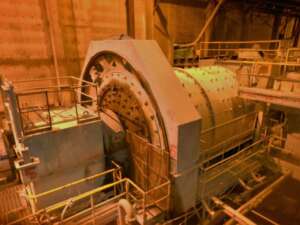

COMMENTS:Very good condition. Matchmarked, Dismantled and Stored, ready for immediate shipment and re-installation. Single compartment. No grate, trunnion overflow. Gravity fed via spout, open Feed trunnion liner with rubber seal assembly. Discharge via Trunnion l
