- MFD.BY:Allis Chalmers
- DATE MFD:1970 approx.
- TYPE:Continuous Ball Mill
- DIAMETER:6'
- LENGTH:19'
- MAT'L.CONSTRN-SHELL:CS, 1" thick approx.
- MAT'L.CONSTRN-JACKET:NA
- MATLS.CONSTRN-LINER:Ceramic
- SHELL-TYPE:Bolted ends, pedestal support, babbit bearings.
- JACKET-TYPE:NA
- MEDIA:Ceramic Balls 20-30000# available extra
- DRIVEN BY:NA Originally 150HP 3/60/480V

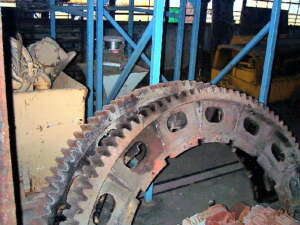

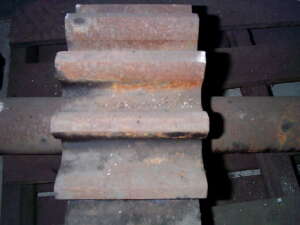

- DRIVEN VIA:Bullgear & Pinion. No reducer, replacement required.
- CAPACITY:5-10TPH approx, dependent on product/size/hardness etc
- PRIOR SVC:Pigments, oxides, Barium.

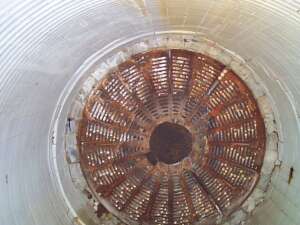

- COMMENTS:Continuous trunnion overflow grate discharge. Babbit bearings. Was 13ft long, later added flanged 6ft end piece.
- SHIPPING SIZE-W X H X L:8'W X 8'H X 30'L
- APPROX. WEIGHT-LBS:40000#
- QUANTITY:1
