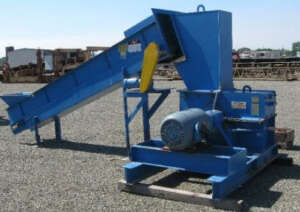

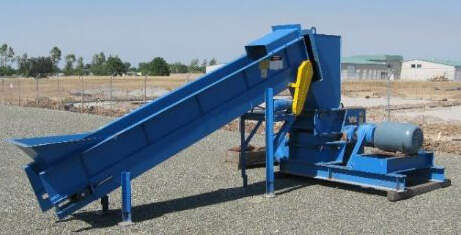

TYPE:Swinging hammers rotate in housing & ground product is discharged through a sized opening grate or screen.
MODEL:C17
SIZE:17" x 19"
FEED THROAT:17”W x 19”L
MAT'L CONSTRN-HOUSING:CS
MAT'L CONSTRN-LINERS :CS
MAT'L CONSTRN-HAMMERS:CS

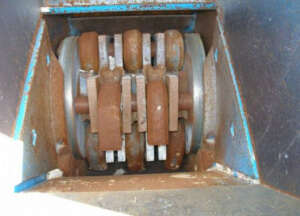

TYPE ROTATING ASS'Y:24” dia. x 20” long. Approx. 4 rows swinging hammers, 2 hammers & 3 hammer sets alternating.
DRIVEN BY:50hp motor, TEFC 3/60/230-460v 1800rpm. Good for 30-75hp.
DRIVEN VIA:Direct coupled
ROTOR RPM:1800 approx.
CAPACITY :4-6 TPH, Depends on product.
PRIOR SVC:Lumber cuttings, waste paper, bark and similar materials.

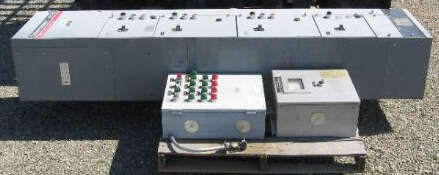

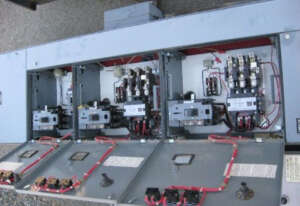

COMMENTS:Outboard bearings. Includes spares and OEM provided Cutler-Hammer motor control swithgear with 600Amp disconnect, two NEMA Size #3 and one NEMA Size #1 magnetic starter switches mounted in floor standing enclosure. 16" wide x 12' long inclined feed convey
