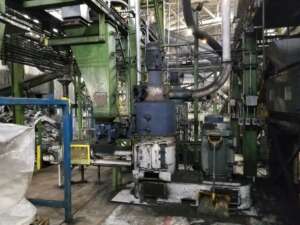

MFD.BY: Elliott Machine Shop Inc DATE MFD: 1980 approx. TYPE: Centrifugal impact action. High speed fixed clearance rotor with impactor pins rotate inside chamber. Product fed into grinding chamber is struck by rotor/impactor pins or bars, accelerated to rotor tip speed & thrown against chamber liners for further p MODEL: ACM Pulverizer SIZE: 30"ID grinding chamber FEED TYPE: 2HP 8" screw conveyor, horizontal attached at grinding chamber base. MAT'L CONSTRN-HOUSING: CS MAT'L CONSTRN-LINERS : Hardened Alloy MAT'L CONSTRN-ROTOR: CS with bolted replaceable hardened steel tips. DISCHARGE: Mechanical classifier, belt driven by 20HP 3/60/230-460v. Vari speed, VFD. Requires 10hp min.@ -325mesh. DRIVEN VIA: V-belts, vertical, shaft down under base frame. ROTOR RPM: 3000 approx. CAPACITY : 1000-8000pph depending on product, feed vs discharge size etc. PRIOR SVC: Calcium Carbonate. 1,100PPH @ 5-7 Microns/-600mesh, 4-6000PPH @ 95% 325M, 6-8000PPH @ 95% 200M. Air flow 3000-4,500CFM approx. COMMENTS: 1/2hp oil pump. Air system not included, typically- Hoffman Blower, 4000CFM @ 4"HG w/40HP. Dust collector baghouse 6ft dia, w/64 @ 4-1/2" dia x 6ft long bags, approx. 400sq.ft., 2-4000CFM, 1,000PPH solids rate w/Rotary airlock valve approx. SHIPPING SIZE-W X H X L: 4'W X 6'H X 8'L approx. APPROX. WEIGHT-LBS: 6500# QUANTITY: 3
