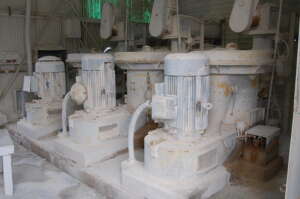

1270857 - MILL, IMPACT, RAYMOND, HURRICANE 730, CS, 150HP [8]

  • MFD.BY:Raymond/ Elliott
  • DATE MFD:1980 approx.
  • TYPE:Centrifugal impact action. High speed fixed clearance rotor with impactor pins rotate inside chamber. Product fed into grinding chamber is struck by rotor/impactor pins or bars, accelerated to rotor tip speed & thrown against chamber liners for further p
  • MODEL:Hurricane Pulverizer/ Classifier Mdl. 730
  • SIZE:30"ID grinding chamber
  • FEED TYPE:1HP Sprout Bauer/Smoot rotary valve feeding infeed screw conveyor.
  • MAT'L CONSTRN-HOUSING:CS
  • MAT'L CONSTRN-LINERS :Tungsten Carbide faced
  • MAT'L CONSTRN-ROTOR:Hard alloy, replaceable blades
  • DISCHARGE:8" dia discharge. Integral Mechanical classifier, 2000-3500CFM.
  • DRIVEN VIA:V-belts
  • ROTOR RPM:3000 approx.
  • CAPACITY :8-10000PPH @ feed 50-100mesh/10-15 microns, discharge 5-7 Microns/-600mesh.
  • PRIOR SVC:Kaolin clay
  • COMMENTS:Oil cooled bearings, 1/2hp pump attached..
  • SHIPPING SIZE-W X H X L:4'W X 6'H X 8'L
  • APPROX. WEIGHT-LBS:6500#
  • QUANTITY:8
