1271993 - MILL, PAN PELLETIZER, 39''DIA, S-WALDRON, 1000, SS [1]

  • MFD.BY:Sprout Waldron
  • DATE MFD:2000 approx.
  • TYPE:Pan pelletizer. Dry powdered product is fed onto an inclined, circular, flat shallow pan which rotates. A liquid binding agent is sprayed onto the powder,causing the mixture to agglomerate and pelletize into small "bee-bee's".Varying the angle of incline
  • MODEL:1000
  • DIAMETER-PAN:1000mm/39.5''
  • DEPTH PAN:8"
  • MATL'S. CONSTRN-PAN:SS

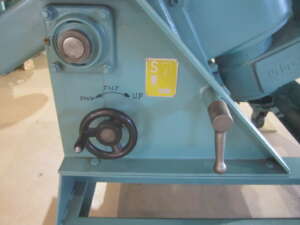

  • INCLINE MECHANISM:Manual screw. Variable 40-60° w/locks.
  • DRIVEN BY:1HP, 3/60/230-460V, 1750 RPM, approx.
  • DRIVEN VIA:V.Speed, Reeves, belt.
  • CAPACITY :500PPH approx.

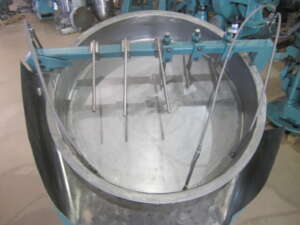

  • COMMENTS:Adjustable 3-finger baffles/scrapers, side scraper. Liquids dispenser system. Start/Stop control. 36" high discharge. Mounted on frame with castors.
  • SHIPPING SIZE-W X H X L:4'W X 4'H X 4'L
  • APPROX. WEIGHT-LBS:800#
  • QUANTITY:1
