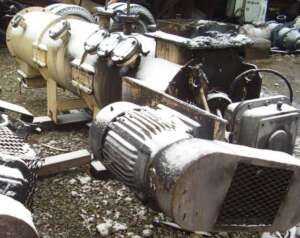

1270330 - MILL, PELLET, ANDRITZ SPROUT, 32TW700, 30TPH, 600HP [2]

  • MFD.BY:Andritz Sprout
  • DATE MFD:1997
  • TYPE:Pellet mill. Product is fed from overhead mixer through feed chute into vertical circular pelleting chamber. Product directed between inside face of die and fixed position, free turning rollers, which push material through holes in die as they turn. Extru
  • MODEL:32TW-700
  • PELLET SIZE:1/2" approx.. 1/8"-1/2" available, extra
  • ROLLER TYPE :Free turning.
  • FEEDER:Yes
  • MIXER:Mdl B-400 batch mixer, available extra. Blends ingredients with steam/water/binder.
  • DRIVEN BY:300HP [2], 3/60/460V TEFC, 1200rpm motors.
  • CAPACITY :30 TPH approx. depending on product, binder, pellet dia, rotor speed etc. [40-80HP per TPH Wood, 7-20HP per TPH Feed]
  • PRIOR SVC:Coal.
  • COMMENTS:New rollers and dies available, custom made to suit process, dies $7,000 approx. Double Pass Cooler mdl. DP740 avail.
  • SHIPPING SIZE-W X H X L:7'W X 6'H X 8'L
  • APPROX. WEIGHT-LBS:30000#
  • QUANTITY:2
