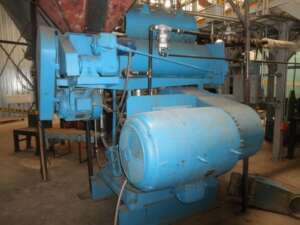

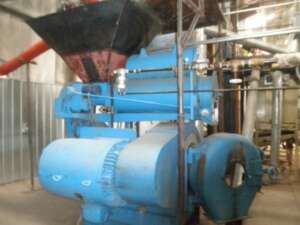

TYPE:Pellet mill. Product is fed from overhead mixer through feed chute into vertical circular pelleting chamber. Product directed between inside face of die and fixed position, free turning rollers, which push material through holes in die as they turn. Extru
MODEL:501D
PELLET SIZE:1/4"

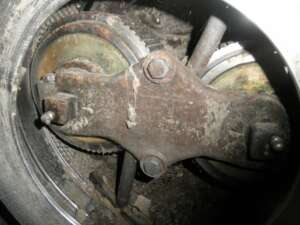

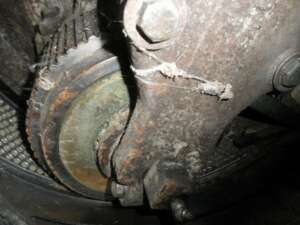

ROLLER TYPE :Double rolls inside die, corrugated face, force product through die. Fixed position, free rotating on individual shafts.

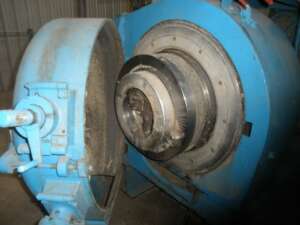

DIE TYPE:Rotating 4"wide x 22''dia, 1/4" dia holes.
FEEDER:10"dia x 36" long screw auger feeds product into conditioner / mixer section.

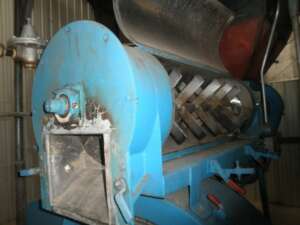

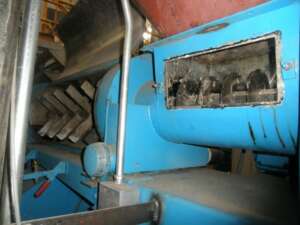

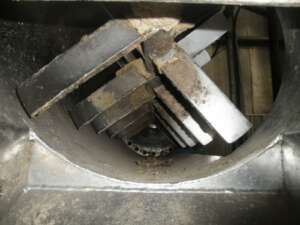

MIXER:18"dia x 48" long mixing section with 4 paddle blade sets welded along horizontal shaft, driven by 7.5HP 3/60/208-230-460v motor.. Blends ingredients with steam/water or liquid additives. Discharges directly into pelletizing infeed mounted below.
