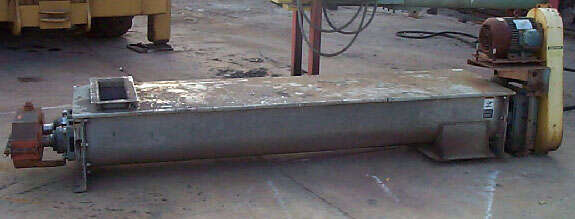

1270028 - MILL, PUG, 17CF, 2'W X 14"D X 8'6"L, 1-10TPH, 316SS, 7.5HP, AMSTEEL, UNUSED [1]
MFD.BY:American Steel, St Louis, MO
DATE MFD:2000 approx.
TYPE:Pugmill. Horizontal trough with rotating heavy duty dual shafts with bolted, replaceable, short paddle type blades or fingers. Heavy duty mastication, delumping action. Typically used in clays, limestone, cement plants.
VOLUME:17CF approx.
TROUGH SIZE:2'W X 14"D X 8'6"L
MATL'S. CONSTRN-TROUGH:316SS
MAT'L. CONSTRN-ROTOR(S):316SS
TOP COVER:316SS
JACKET:NA

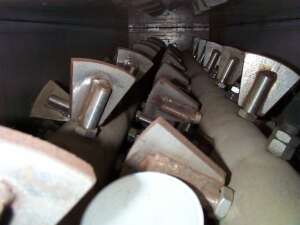

BLADE(S):Paddles, fan shape, 4 rows of 8 per shaft, approx., staggered. Adjustable pitch w/lock nut.
ROTOR SHAFT SIZE(S):3"dia approx.
BEARINGS:Outboard
DRIVEN BY:7.5 HP 3/60/230-460V 1800rpm approx.
DRIVEN VIA:Shaft mounted reducer.
CAPACITY :1-10TPH Approx.
PRIOR SVC:Appears unused
COMMENTS:Feed oposite drive, approx. 6" x 18" rectangular flanged opening in cover. Discharge flange 12" X 18" at drive end trough bottom.
