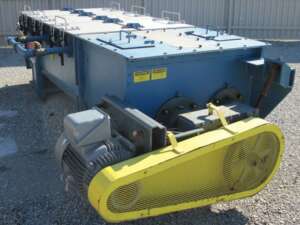

1270883 - MILL, PUG, 70CF, 4'W X 2'D X 10'L, 10-20TPH, CS, 25HP, METSO, DW15 [1]

  • MFD.BY:Metso
  • TYPE:Pugmill. Horizontal trough with rotating heavy duty dual shafts with bolted, replaceable, short paddle type blades or fingers. Heavy duty mastication, delumping action. Typically used in clays, limestone, cement plants.
  • MODEL:DW-15 Mixer Conditioner
  • VOLUME:70CF
  • TROUGH SIZE:4'W X 2'D X 10'L
  • MATL'S. CONSTRN-TROUGH:CS
  • MAT'L. CONSTRN-ROTOR(S):CS
  • TOP COVER:CS
  • JACKET:NA

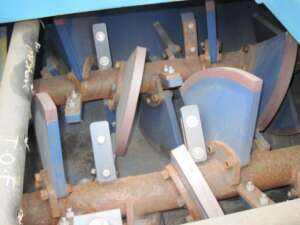

  • BLADE(S):Paddle, triangular, bolted. CS. Fixed.
  • ROTOR SHAFT SIZE(S):4" dia approx.
  • BEARINGS:Outboard
  • DRIVEN BY:25HP 3/60/230-460V 1800rpm
  • DRIVEN VIA:Reducer via V-Belts
  • CAPACITY :10-20TPH approx.
  • PRIOR SVC:Unused. Fly Ash svc.
  • SHIPPING SIZE-W X H X L:4'W X 3'H X 14'L
  • APPROX. WEIGHT-LBS:10000#
