1270893 - MILL, PUG, 75CF, 6'W X 3'D X 6'L, CS, 75HP, MADSEN [1]
MFD.BY:Madsen
DATE MFD:1980 approx.
TYPE:Pugmill. Horizontal trough with rotating heavy duty dual shafts with bolted, replaceable, short paddle type blades or fingers. Heavy duty mastication, delumping action. Typically used in clays, limestone, cement plants.
VOLUME:75CF

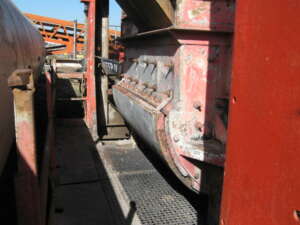

TROUGH SIZE:6'W X 3'D X 6'L
MATL'S. CONSTRN-TROUGH:CS
MAT'L. CONSTRN-ROTOR(S):CS
TOP COVER:CS
JACKET:CS
BLADE(S):Paddle, triangular, bolted. CS. Fixed.
ROTOR SHAFT SIZE(S):6" dia approx.
BEARINGS:Outboard

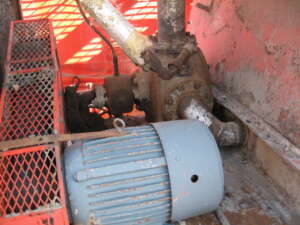

DRIVEN BY:75HP 3/60/230-460V 1800rpm approx.
DRIVEN VIA:Reducer
PRIOR SVC:Asphalt

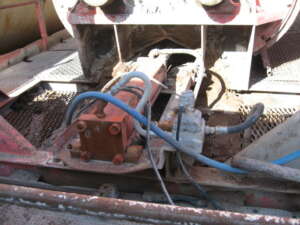

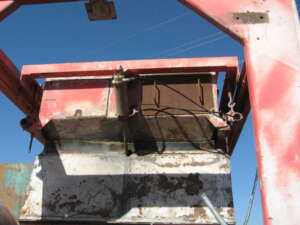

COMMENTS:Package unit skid mounted. Gear pump discharge, 25hp approx. Top feed hopper mounted in frame over the trough.
