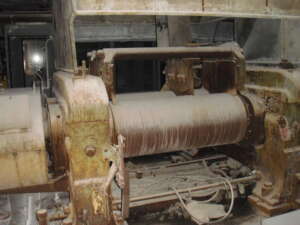

TYPE:2 Roll Mill. Product passes between smooth faced rolls turning at different rpm`s with adjustable, close tolerance, gap(s) between rolls causing attrition/size reduction. Popular uses: Printing inks, Paint pigments, etc.
ROLLS-SIZE:24” dia x 60” long face.
ROLLS-NUMBER:2
FEATURES :Manual screw adjustment for roll nip/gap.
MAT'L.CONSTRN-ROLLS:CS
DRIVEN BY:250HP motor. 3/60/440V 600RPM, Synchronous, Type ABF.
DRIVEN VIA:Parallel shaft gear reducer, Farrel, size SR.2611, ratio 5.97:1, 600/1005RPM input. One roll driven and spur gears drive other roll from first, at opposite end.
PRIOR SVC:Plastics
COMMENTS:Calendar roll mill. Smooth face rolls. Cored rolls for cooling. Cast iron frame ends. Spare pair of rolls available, extra.
