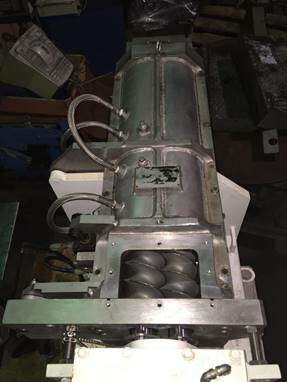

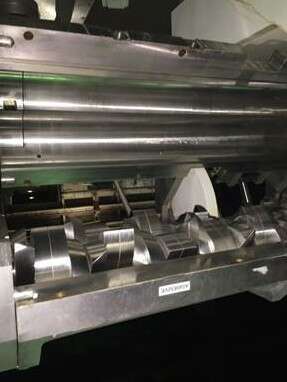

MFD.BY: Teledyne Readco, York, PA. DATE MFD: 2001 TYPE: Twin shaft continuous processor, heavy duty. Horizontal shafts in mixing chamber. MODEL: 5''D x 36''L MAT'LS CONSTRN-BODY: SS ½” thick. MAT'LS CONSTRN-SHAFTS: 17-4PH SS Blades/paddlesSS. [TBC] SHAFTS-TYPE: Combination elements on splined shafts SHAFTS-CORED: No JACKET-TYPE: CS, ¼” thick, 6SF area, rated 150# @ -20/+450°F, ASME coded. DRIVEN BY: 7.5HP motor, 3/60/230-460V @ 1750 rpm. DRIVEN VIA: 13.01:1 ratio. 3654/851 rpm input.[tbc] RPM-SHAFTS: 280-70 rpm output. [tbc] CAPACITY : 0.501CF volume. PRIOR SERVICE: Feed 714pph solids (plastic) 1438pph water. Viscosity 200-3000 c.p.[typical] COMMENTS: Stuffing box seals on shaft into chamber. Manual Hyd pump to open/close clamshell body. On SS base, unitized. Torque @ 100 rpm = 12,600 lb/in. [tbc] SHIPPING SIZE-W X H X L: 2'W X 5'H X 7'L APPROX. WEIGHT-LBS: 3200# QUANTITY: 1
