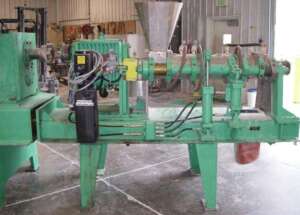

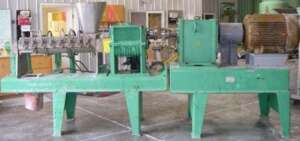

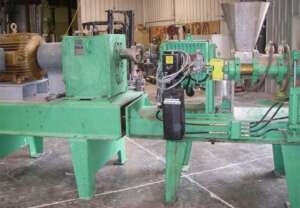

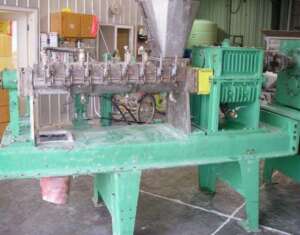

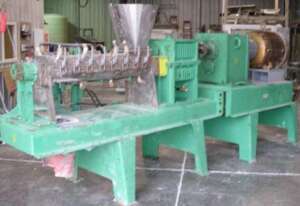

1270942 - MIXER, 2-SHAFT, TELEDYNE READCO, 6''DIA, SS BODY, SS SHAFTS, 150#JKT, 125HP [3]

  • MFD.BY:Teledyne Readco, York, PA.
  • DATE MFD:1982
  • TYPE:Twin shaft continuous processor, heavy duty. Horizontal shafts in mixing chamber.
  • MODEL:6”
  • MAT'LS CONSTRN-BODY:SS
  • MAT'LS CONSTRN-SHAFTS:SS
  • SHAFTS-TYPE:Combination interacting and self cleaning mixing & conveying elements keyed to shafts. Process customizable re mixing and shearing or conveying zones.
  • SHAFTS-CORED:No
  • PRESSURE-BODY:'O' ring sealed and flanged, bolted w/horizontal seam.
  • JACKET-TYPE:150# @ 600°F., ASME coded.
  • DISCHARGE:Gravity, airlock
  • DRIVEN BY:125 HP, 3/60/480V @ 1780 rpm. Fr 444T

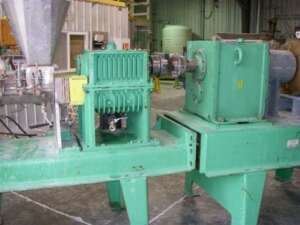

  • DRIVEN VIA:Falk reducer, mdl 2110Y2-B, pll shaft. 9.31:1 ratio, 188rpm output, rated 277hp.
  • RPM-SHAFTS:230/29 rpm output typical approx.
  • CAPACITY :150-7000 pph approx. Viscosity 200-1,000,000 c.p. Plastics, minerals, gum, sealants etc.
  • PRIOR SERVICE:Minerals. Unused

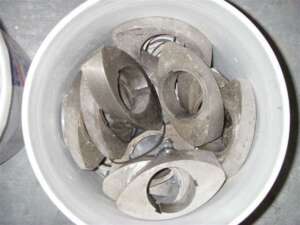

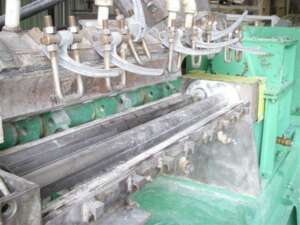

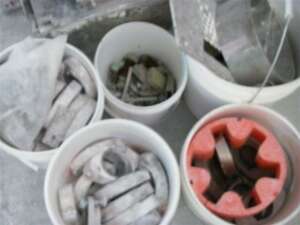

  • COMMENTS:Seals on shaft into chamber. Shafts approx. 48" long. Electric over Hydraulic power pack and operator for clam-shell type hinged top half of mixing chamber.nOn stand, unitized.nTorque @ 100 rpm = 12,600 lb/in.nNew bearings/seals. Includes $1400 spare p
  • SHIPPING SIZE-W X H X L:3'W X 7'H X 20'L
  • APPROX. WEIGHT-LBS:10500#
  • QUANTITY:3
