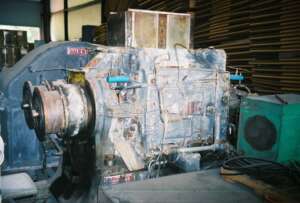

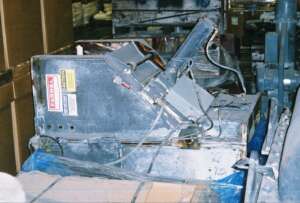

MFD.BY: Farrel DATE MFD: 1994 TYPE: Banbury type, high intensity, double rotor, batch mixer. Horizontal shafts with low profile, contoured wing-type, blades.Blades overlap, producing shear. Closed chamber, cooling jacketted, normally hydraulic ram fed with, drop or sliding, full chamber bot MODEL: F200 MAT'LS CONSTRN-BODY: CI MAT'LS CONSTRN-ROTORS: Stellite tipped, tip cooled, 4 wings, Chrome plated. JACKET-TYPE: Drilled. 100# approx. FEED: Pneumatic activated crammer, vertical. DISCHARGE: Drop bottom valve, rack & pinion operation, chrome plated. DRIVEN BY: Last svc. 2500HP (Less motor) RPM-ROTORS: 120RPM to rotors approx.. CAPACITY : 200L chamber PRIOR SERVICE: HDPE. Shut down 1997 COMMENTS: Similar to 9D and replacement/update for same. Approx. 30" long rotors, higher rpm/hp. Starter incl for 1500HP. Spare rotors available [extra] SHIPPING SIZE-W X H X L: 8'W X 8'H X 20'L APPROX. WEIGHT-LBS: 67000# QUANTITY: 1
