- MFD.BY:Barr & Murphy Canada Ltd
- DATE MFD:2000 approx.

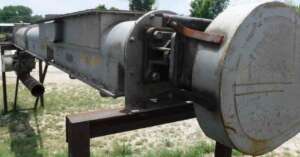

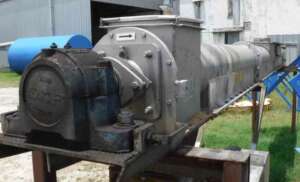

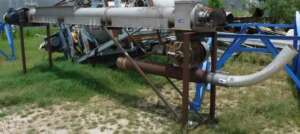

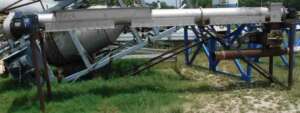

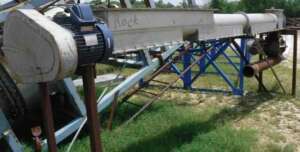

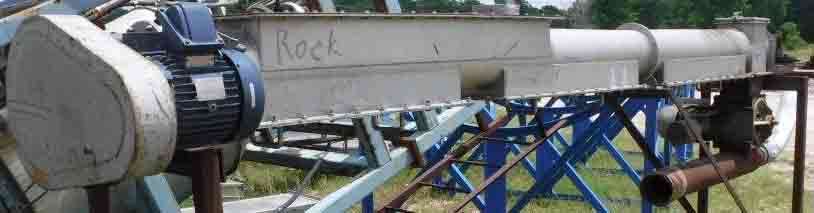

- TYPE:Feed Screw Conveyor/ Mixer, segmented screw flight on shaft in cylindrical trough, continuous, horizontal.
- SIZE:12"dia x 20'long approx.
- MAT'LS CONSTRN:SS shell and rotor.
- CONNECTIONS:Rectangular flanged top end inlet approx 12" x 72" long, discharge opposite driven/feed end downward facing 12" square approx.

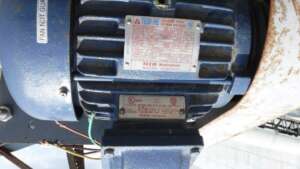

- DRIVEN BY:3HP 3/60/230-460V, XP Fr 182T motor .
- DRIVEN VIA:Gearmotor, direct coupled.
- RPM-ROTOR:Variable
- PRIOR SERVICE:Wood shavings and additives

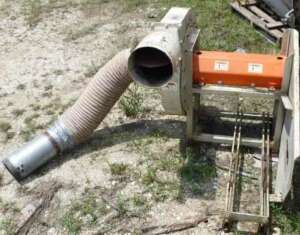

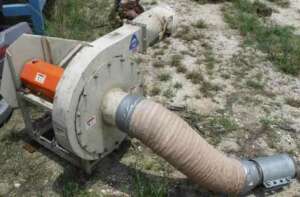

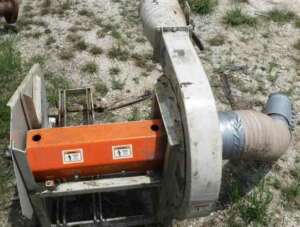

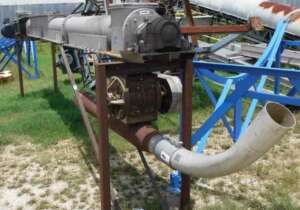

- COMMENTS:Rotary airlock valve attached under discharge with pneumatic line adaptor and available Kice 3HP Blower.
- SHIPPING SIZE-W X H X L:3'W X 5'H X 22'L
- APPROX. WEIGHT-LBS:800#
- QUANTITY:1
