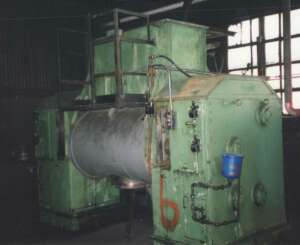

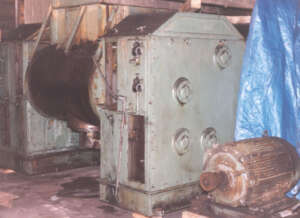

TYPE:Sigma, dual level. Double Arm. OEM states dual level bowl has an effective mixing and jacketed area 50% greater than conventional double arm mixers, giving a more thorough mix in shorter mix cycle.
MODEL:350/500DA Dual Level
VOLUME:350Gal. working, 550Gal total
TROUGH-SIZE:3'L X 6'W X 5'D approx. [33"deep x 58"wide x 58" long.]
MAT'L CONSTRN-TROUGH:304SS ½"thick
PRESSURE-TROUGH:ATM#
JACKET TYPE:CS
PRESSURE-JACKET:125# ASME
MAT'L CONSTRN-BLADES:304SS, cast. Shafts 431Chrome steel, hardened to 330Brinell.
CONNECTIONS:12" out
DISCHARGE:Pneumatic actuated 15" butterfly valve. Non tilting design.
COMMENTS:Arms positioned on different horizontal plane, discharge through single 15" outlet. Not vacuum rated, possible if retrofit shaft seals and top cover.
