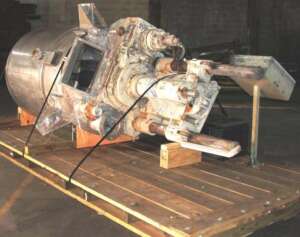

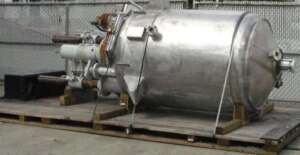

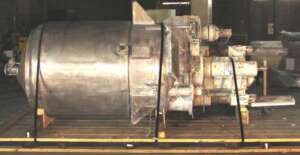

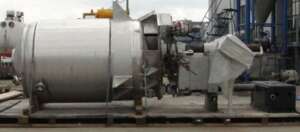

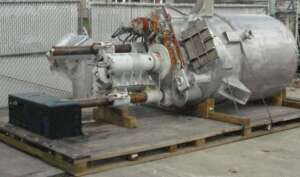

1271816 - MIXER, DISPERSER, BUHLER, 1500L, 387GAL., JKT.VAC.TANK, 2-SHAFT, SS, 100HP &30HP [2]

  • MFD.BY:Buhler
  • DATE MFD:1995
  • TYPE:Double action.Low speed outer wiper blade & high speed shear type blade,mixes and disperses product.
  • MODEL:1500L Vacuum Processor, fixed head, dual shaft
  • CAPACITY-TANK(S):387Gal approx, 1500L
  • MAT'L CONSTRN-TANK(S):SS
  • TYPE-TANK(S):54"OD Jkt, rated 50# @ 250Deg F, 2"[2] conns. Tank 51''ID x 66''H plus 12" cone bottom, rated 3#FV @ 250Deg F. 10"dished top head w/12"X18", 8", 4", 3"[sightglass], 2"[3], 1"flanged conns. Bottom 3" CBO w/ball valve. 3 Lug supported. 15'4''OAH. Jkt thick
  • SHAFT-SIZE:3"Dia Disperser. 5"dia sweep approx. Concentric.
  • MAT'L CONSTRN-SHAFT:SS
  • BLADE(S)-TYPE:12"Dia disc w/vanes on tip (Dispersion/Hi-Speed). Adjustable depth 19"range. Sweep is anchor type w/2 vertical sweep w/teflon tips, sweep/wipe bottom cone and shell walls.
  • LIFT-TYPE:Electric over hydraulic

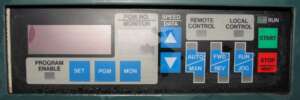

  • DRIVEN BY:100HP 3/60/440V [new motor provided at cost, original missing] w/Reliance GP2000 VFD constant torque controller [Hi speed]. Hydraulic driven Sweep blade approx. 30HP.
  • DRIVEN VIA:V-belt [High speed]. Chain gear [Sweep]
  • RPM-SHAFT:VS
  • PRIOR SVC:Chemical

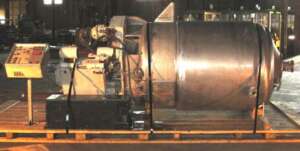

  • COMMENTS:Original support mezzanine was all SS, not included. Buhler pedestal local control panel with LED's. Top loading hatch/MH w/cover.
  • SHIPPING SIZE-W X H X L:6'W X 6'H X 14'L
  • APPROX. WEIGHT-LBS:9000#
  • QUANTITY:2
