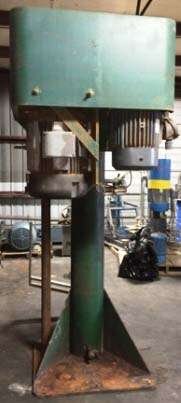

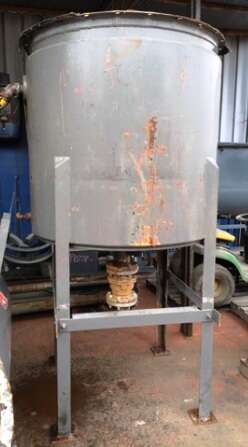

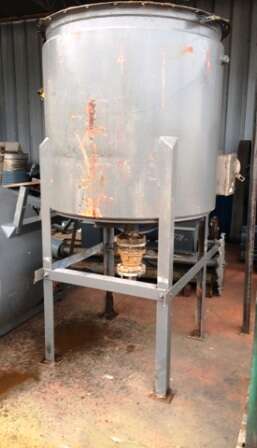

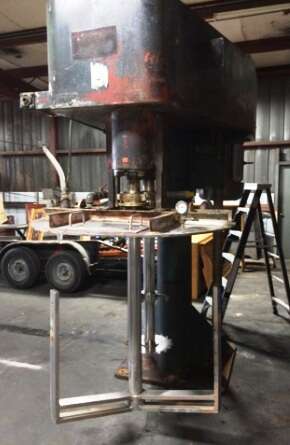

MFD.BY: Myers DATE MFD: 1998 TYPE: Double action.Low speed outer wiper blade & high speed shear type blade,mixes and disperses product. MODEL: 50/30 CAPACITY-TANK(S): 380Gal approx MAT'L CONSTRN-TANK(S): SS TYPE-TANK(S): Jktd. 47''ID X 48''H plus 6" cone bottom. 3" CBO. CS Jkt. rated 4psig & 10#Vac. internal, 4psig Jkt. On legs, total 98" OAH. Mfd Modern Welding. SHAFT-SIZE: 3"Dia x 50" Disperser. 3"dia x 62" sweep x 46" sweep dia, 3 blades w/Teflon tips. MAT'L CONSTRN-SHAFT: SS BLADE(S)-TYPE: 14"Dia disc w/vanes on tip (Dispersion/Hi-Speed) 10" Blade Clearance Lowered. 36" Throat. LIFT-TYPE: Electric over hydraulic DRIVEN BY: 50HP 3/60 220-440V, 1765 RPM. 365U/286T Fr. [Hi speed], 30HP [sweep]. DRIVEN VIA: Belt RPM-SHAFT: VS COMMENTS: Unit sits on a base plate with tank in position. 112"OAH Lowered. Will Be Refurbished, supplied with VFD"s for variable speed, Cleaned and Painted. Test Run. SHIPPING SIZE-W X H X L: 6'W X 9'4''H X 8'L APPROX. WEIGHT-LBS: 6000# QUANTITY: 2
