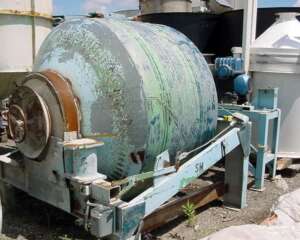

TYPE:Munson mixer. Batch operation. Self cleaning. Horizontal axis, cylindrical shell with conical ends opposite one another, rotating around the axis of a line drawn through cone ends. Shell has internal lifters arranged in a "chevron" pattern which lift and
MODEL:700-25 or similar
SIZE:64" dia. x 36" waist", plus 9" & 9" long cones.approx.
CAPACITY:25CF Working approx. 80CF total
MAX.PRODUCT DENSITY:70#CF approx.
MAT'L.CNSTRN-SHELL:CS
JACKET TYPE:None
PRESSURE-JACKET:N/A
DRIVEN BY:10HP motor, 3/60/230-460V.
DRIVEN VIA:Gear reducer, Reynolds 20:1, Chain
COMMENTS:Supported on trunnions/rollers. Internal type lifters, self cleaning. Requires some refurbishing.
