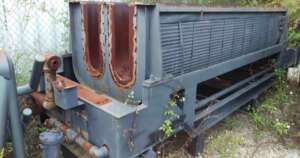

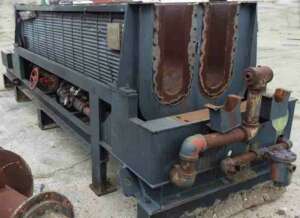

1271842 - MIXER, PADDLE DRYER, K-S NARA, NPD-6W, 261SF, CS, 150#JKT, 150#ROTOR, 30HP [1]

  • MFD.BY:Komline-Sanderson
  • DATE MFD:1991

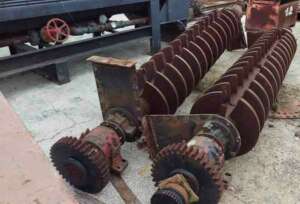

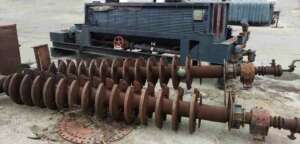

  • TYPE:Nara Paddle dryer/processor. Heavy duty, horizontal trough mixer with rotary heated wedge shaped segmented screws to mix and convey heavy, viscous and abrasive materials i.e; Asphalt, Soil remediaton products etc.
  • MODEL:NPD-6W
  • TROUGH-SIZE/VOLUME:44"W X 27"D X 10'L approx. [tbc]. 56CF approx.
  • HEAT TRANSFER AREA:Heat transfer 261SF total, 81SF Jkt, 180SF Rotors, approx.
  • MTL'S CONSTRN-TROUGH:CS
  • JACKET TYPE:Dimple jacket externally insulated and sheathed w/corrugated alum.
  • PRESSURE-JACKET:150# @ 366°F. MAWP ASME. N.Bd.
  • MAT'L CONSTRN-SCREW(S):CS
  • NO. SHAFTS:2
  • BEARINGS/SEALS:Roller bearings. Packed gland seals.
  • CONNECTIONS:36"wide x 12"long, top feed at drive end. Discharge at bottom, gland end opposite drive.
  • DRIVEN BY:30HP
  • DRIVEN VIA:Worm type right angle Gear reducer [Eurodrive typical] via timing gears.
  • RPM-BLADE(S):Variable, 0.1-10 rpm typical range.
  • PRIOR SVC:Chemical duty. 2000pph feed, 80% H2O reduction, 400pph dry discharge w/350Deg F saturated steam
  • COMMENTS:Removable top vapor dome type cover. Refurbishing required includes Rotary joints, Bearings, shaft seals. Steam heating medium.
  • SHIPPING SIZE-W X H X L:5'W X 7'6"H X 21'L
  • APPROX. WEIGHT-LBS:17600#
  • QUANTITY:1
