- MFD.BY:Komline-Sanderson
- DATE MFD:2005

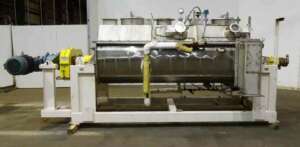

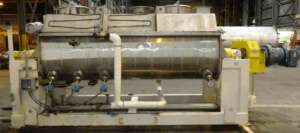

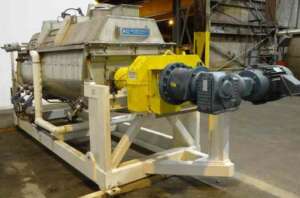

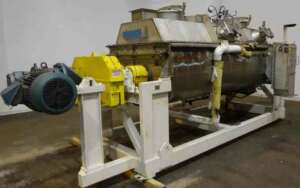

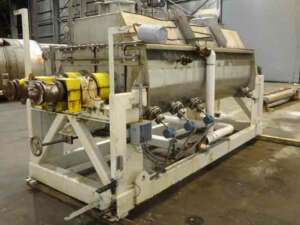

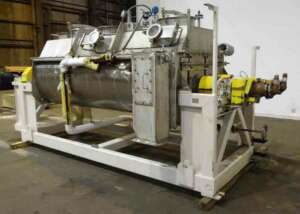

- TYPE:Nara Paddle continuous dryer/processor. Heavy duty, horizontal trough mixer with rotary heated wedge shaped segmented screws to mix and convey heavy, viscous and abrasive materials i.e; Asphalt, Soil remediaton products etc.
- MODEL:NPD-6W-290
- TROUGH-SIZE/VOLUME:44"W X 27"D X 10'L 56CF approx.
- HEAT TRANSFER AREA:290SF
- MTL'S CONSTRN-TROUGH:304SS
- PRESSURE-JACKET:180# @ -20/+380°F. ASME. N.Bd.
- MAT'L CONSTRN-SCREW(S):304SS
- NO. SHAFTS:2
- BEARINGS/SEALS:Roller bearings.
- CONNECTIONS:20"MH [2], 12", 6" sight glass [2], 1" [6]
- DRIVEN BY:25HP 3/60/230-460V, 1770rpm..

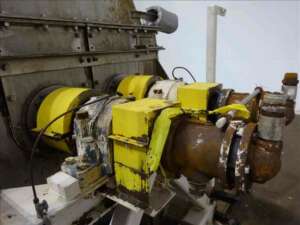

- DRIVEN VIA:SEW right angle Gear reducer via timing gears. 123:1 Red
- RPM-BLADE(S):Variable, 14.35 Max
- COMMENTS:Removable top cover. Rotary joints. Steam heated.
- SHIPPING SIZE-W X H X L:9'W X 7'6"H X 21'L
- APPROX. WEIGHT-LBS:17600#
- QUANTITY:1
