- MFD.BY:Komline-Sanderson
- DATE MFD:2005

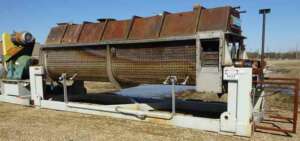

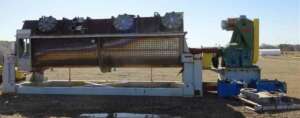

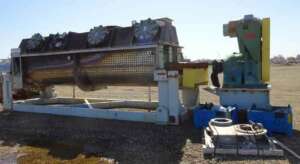

- TYPE:Nara Paddle continuous dryer/processor. Heavy duty, horizontal trough mixer with rotary heated wedge shaped segmented screws to mix and convey heavy, viscous and abrasive materials i.e; Asphalt, Soil remediaton products etc.
- MODEL:NPD-9W-800
- TROUGH-SIZE/VOLUME:65"W X 45"D X 19'L
- HEAT TRANSFER AREA:800SF
- MTL'S CONSTRN-TROUGH:316LSS

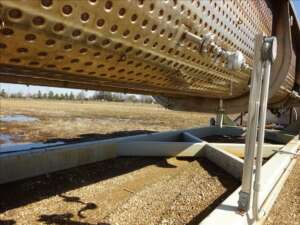

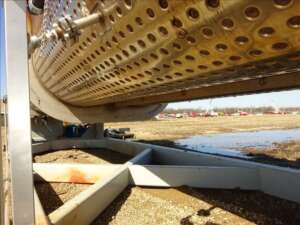

- JACKET TYPE:Dimple. 2 zones
- PRESSURE-JACKET:150# @ 366°F.
- MAT'L CONSTRN-SCREW(S):CS. PTFE coated 0.006"
- NO. SHAFTS:2

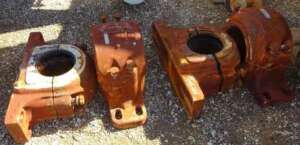

- BEARINGS/SEALS:Roller bearings.

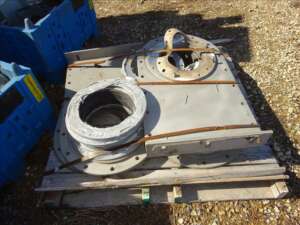

- CONNECTIONS:18" X 18"MH [2], 16". 48" x 13" disch.
- DRIVEN BY:75HP 3/60/230-460V, 1780rpm..
- DRIVEN VIA:SM Cyclo right angle Gear reducer via timing gears. 59:1 Red
- RPM-BLADE(S):Variable, 30 Max

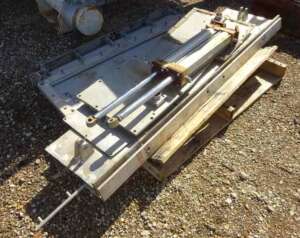

- COMMENTS:Removable top cover. Shaft wt 11000lbs ea. Rotary joints. Steam heated. CS Frame. Air operated slide gate disch.
- SHIPPING SIZE-W X H X L:6'W X 8'H X 31'L
- APPROX. WEIGHT-LBS:53000#
- QUANTITY:1
