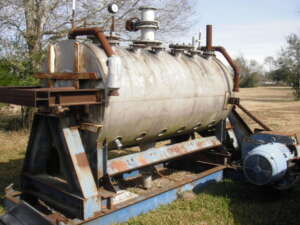

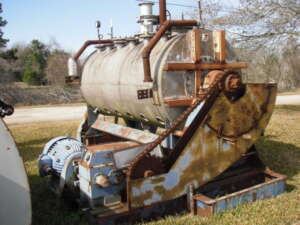

0914200 - MIXER, PLOWSHARE, 148CF, LITTLEFORD, FKM-4200D, 304SS, 100#JKT, 6 CHOPPER, 75HP [1]

  • MFD.BY:Littleford, Div'n of J.H.Day.
  • DATE MFD:1977 approx.

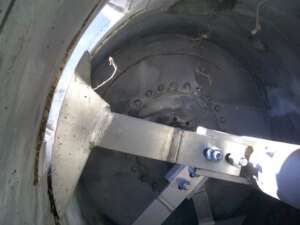

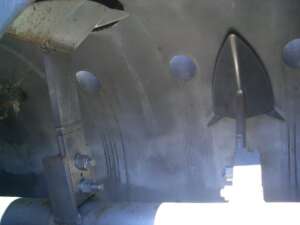

  • TYPE:Littleford type mixer. Horizontal cylindrical mixing chamber with longitudinal rotor assembly. Rotor has a set of perpendicular arms, arranged in a staggered pattern, with plough shaped blades on the ends.The ploughs travel close to the inner wall of the
  • MODEL:FKM-4200D [Nameplate missing.]
  • SIZE:54''ID x 10’L, 5/16” thick.
  • CAPACITY:148CF
  • MAX.PRODUCT DENSITY:200#CF
  • MAT'L.CNSTRN-SHELL:304SS
  • PRESSURE-SHELL:Vacuum. Externally stiffened ends for vacuum service.
  • JACKET TYPE:304SS, straight type, covers shell cylinder.
  • NO. CHOPPERS:NA [6 originally installed, removed for thermowell installation, available separately, extra $5800ea. new.]
  • TYPE CHOPPERS:NA [New replacements: 10HP, 3,500rpm, 3/60/230-460, TEFC, packed seals, extended shaft spacer, washer, locknut, tulip blade, mounting bracket, pusher]

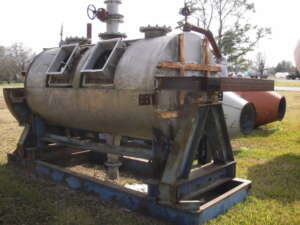

  • CONNECTIONS:2 inspection ports in side, w/18” square hinged covers [missing]. Rectangular outlets in bottom 8” x 12”. 6 @ 3” dia. top entering liquid additives nozzles. 3 top inlets 12” dia. 2 @ 3” dia. jacket connection.
  • DRIVEN BY:75HP US Motor, 3/60/220-440V, 1770 rpm, Fr.444US

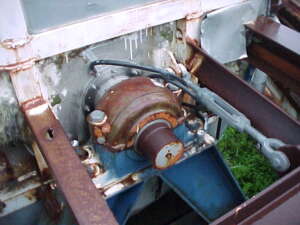

  • DRIVEN VIA:Falk gear reducer, 26.11:1 ratio, 1750 rpm in/67 rpm out, to 18”dia. sprocket w/chain & guards. Rotor speed approx. 75 rpm currently. Mdl# 2090Y2-B.

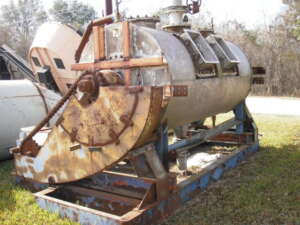

  • RPM-ROTOR:20 rpm to 100 rpm via 3 interchangeable sprocket/chain sets different diameters up to 54".
  • PRIOR SERVICE:Latex/Polymers/Polypropylene. Used 29"HG+ vacuum w/custom plows to fluidize dry powders without need for side entering choppers. Periodically used in a continuous feed/discharge mode, fed in top and discharged from the bottom center outlet via metering/ai

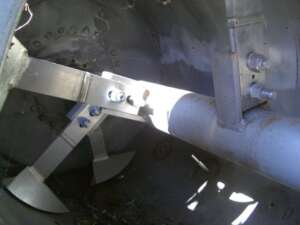

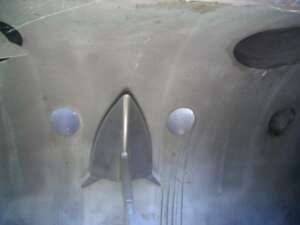

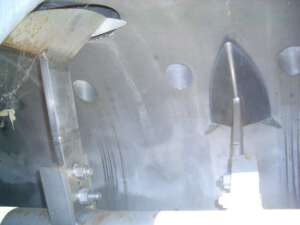

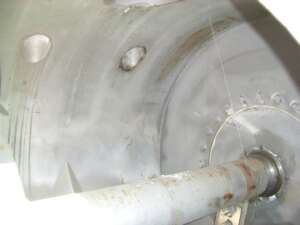

  • COMMENTS:6½” dia. shaft (5” dia @ bearings). Outboard bearings.nReplacement positive pressure mechanical seals, mineral oil lubricated. (6) shaft mounted “plough” blades. (2) extra chain sprocket bullgears, different diameters, for speed variants. Flanged nozzle
  • SHIPPING SIZE-W X H X L:8'W X 8'H X 15'L
  • APPROX. WEIGHT-LBS:20000#
  • QUANTITY:1
