1271097 - MIXER, TURBULIZER, 12''X70'', GPE 12, 316SS SH-316LSS ROTOR, 100#JKT, 10HP, NEW [10]

  • MFD.BY:GPE
  • DATE MFD:2019
  • TYPE:Pin Mixer, Turbulizer style, high intensity mixer/agglomerator with continuous throughput. Horizontal, cylindrical shell housing a high speed internal rotating element. The high speed rotor has a series of perpendicular short blades which fluidize and cau
  • MODEL:12"
  • FEED TYPE:Gravity
  • MAT'L CONSTRN-HOUSING:316SS
  • MAT'L CONSTRN-LINERS :NA
  • MAT'L CONSTRN-JACKET:CS

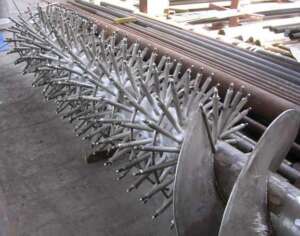

  • MAT'L-ROTOR ASSEMBLY:316LSS w/Nitronic 60 tipped blades.
  • JACKET:Full, conventional
  • PRESSURE-SHELL:ATM#
  • PRESSURE-JACKET:100#
  • CONNECTIONS:8" dia Inlet at drive end. 8" x 12" rectangular bottom outlet at opposite end. 1/2" liquid additives injection point along shell [6]. All connections 150#RFF.
  • DRIVEN BY:10HP, 3/60/230-460v, 1750 rpm approx.
  • DRIVEN VIA:Direct coupled to gearbox.
  • ROTOR-RPM:100-1000 approx.
  • CAPACITY :100-1000PPH approx., dependent on product particle size, moisture, binder, agglomerate particle size required etc.
  • PRIOR SVC:New fabrication

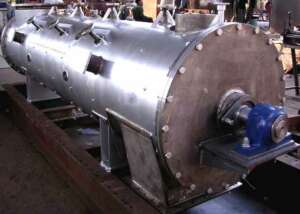

  • COMMENTS:12'' X 70'' Long Chamber. Mounted on unitized frame with drive. Bolted end plates. Removable shaft to adjust clearances.
  • SHIPPING SIZE-W X H X L:2'W X 4'H X 12'L
  • APPROX. WEIGHT-LBS:2000#
