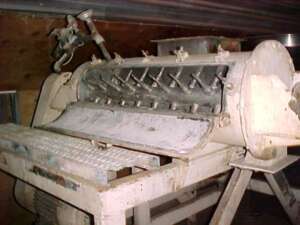

TYPE:Pin Mixer, Turbulizer style, high intensity mixer/agglomerator with continuous throughput. Horizontal, cylindrical shell housing a high speed internal rotating element. The high speed rotor has a series of perpendicular short blades which fluidize and cau
MODEL:TS-14-8 14'' X 42''
FEED TYPE:Gravity
MAT'L CONSTRN-HOUSING:304SS
MAT'L CONSTRN-JACKET:NA
MAT'L-ROTOR ASSEMBLY:304SS
JACKET:None
PRESSURE-SHELL:ATM#
PRESSURE-JACKET:NA

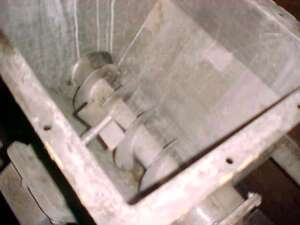

CONNECTIONS:6" inlet via hopper fed auger . 6" sq bottom outlet at opposite end.
DRIVEN BY:20HP, 3/60/230-460
DRIVEN VIA:V-belts
ROTOR-RPM:2200 aprox.
PRIOR SVC:Pizza spices

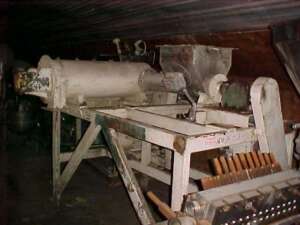

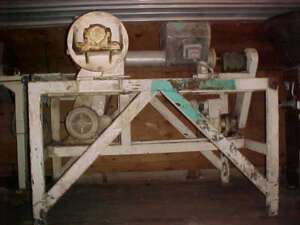

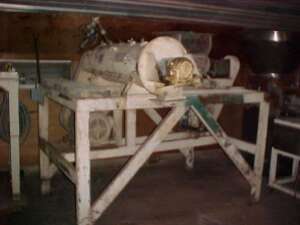

COMMENTS:14" dia. x 42" long mixing chamber. Mounted on 4' high 4 leg stand, unitized w/feeder & drives.
