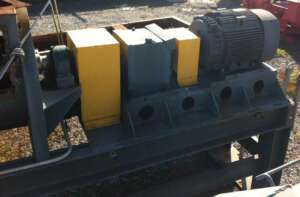

TYPE:Pin Mixer, Turbulizer style, high intensity mixer/agglomerator with continuous throughput. Horizontal, cylindrical shell housing a high speed internal rotating element. The high speed rotor has a series of perpendicular short blades which fluidize and cau
MODEL:30"
FEED TYPE:Gravity
MAT'L CONSTRN-HOUSING:CS
MAT'L CONSTRN-LINERS :NA
MAT'L CONSTRN-JACKET:NA
MAT'L-ROTOR ASSEMBLY:316SS w/CS blades.
JACKET:None
PRESSURE-SHELL:ATM#
PRESSURE-JACKET:NA
CONNECTIONS:12" x 30" Inlet at drive end . 12" x 30" bottom outlet at opposite end. 12" x 30" removable inspection panels along shell.
DRIVEN BY:200HP, 3/60/230-460v, 1750 rpm approx.
DRIVEN VIA:Direct coupled to Falk gearbox.
ROTOR-RPM:150-930 approx.
PRIOR SVC:Coal dust. Hydrocarbons.
COMMENTS:30''Dia X 96'' Long chamber. Refurbished 2010. Mounted unitized frame. Option-Rotor blades can be modified to conventional flat tip bar-stock, screwdriver tip with adjustable pitch, locknut secured, CS or SS, at extra cost.
