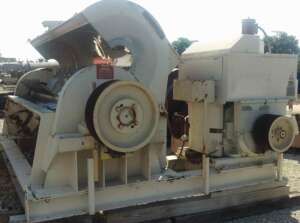

TYPE:Pin Mixer, Turbulizer style, high intensity Densifier/agglomerator with continuous throughput. Horizontal, cylindrical shell housing a high speed internal rotating element. The high speed rotor has a series of perpendicular short blades which fluidize and
MODEL:CB100
FEED TYPE:Gravity, via Airlock/Proportional screw like Acrison/K-Tron.
MAT'L CONSTRN-HOUSING:316SS
MAT'L CONSTRN-LINERS :316SS
MAT'L CONSTRN-JACKET:CS
MAT'L-ROTOR ASSEMBLY:316SS
JACKET:Straight type, covers shell cylinder.
PRESSURE-SHELL:ATM#
PRESSURE-JACKET:50#
CONNECTIONS:Top- 21.5" Sq inlet. Bottom: 16" sq end outlet
DRIVEN BY:350HP 3/60/480v, 1190 rpm.
DRIVEN VIA:Gear reducer, belt drive
ROTOR-RPM:100-300 rpm approx.
CAPACITY :30000-150,000PPH depends on product & binder etc. Last use 23-65000pph.
PRIOR SVC:Detergent. Good for Sludges, Potato Pulp, Grain carriers with Molasses, Dehydrated sewage sludges, Ash, Clay, Gypsum, Phosphates.

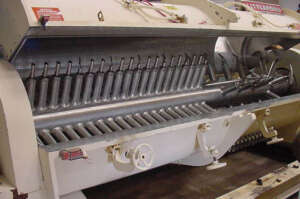

COMMENTS:36” ID x 120'’ long Chamber. Continuous operation. 10in dia shaft. Pneumatically operated bottom end discharge with flush type door. Outboard bearings. Adjustable mixing and densification zones with paddles and pins.
