- MFD.BY:Nash
- DATE MFD:1989/94

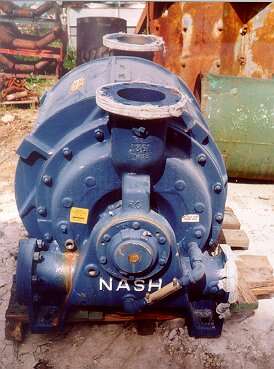

- TYPE:Liquid ring vacuum pump.
- MODEL:CL2002
- MAT'L.CNSTRN-HOUSING:CI
- MAT'L.CNSTRN-IMPELLOR:CI
- DRIVEN BY:125 HP 3/60/230-460V TEFC 1770RPM Fr.444T
- DRIVEN VIA:V-Belt drive
- CAPACITY-MIN-MAX VACUUM:27''Hg

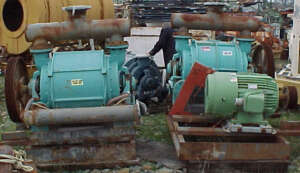

- PRIOR SVC:(1) unit rebuilt in 1993, bare, less manifolds, base, pulley or motor. (2) units used, on base frame w/motor & pulleys.
- COMMENTS:Suction dry air 70° F. Sealing liquid.- Water @ 60°. Cast Iron body and end heads. CI cones and heads, CS shaft.
- SHIPPING SIZE-W X H X L:3'W X 3'H X 5'L
- APPROX. WEIGHT-LBS:2000#
- QUANTITY:2
