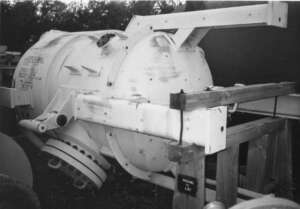

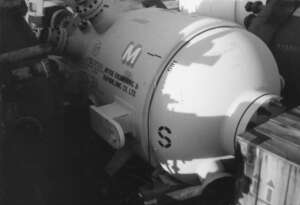

0872300 - REACTOR, 1056 GAL, 304SS, 560#INT, 100#JKT, 7.5HP, UNUSED [1]

  • MFD.BY:Mitsui Eng. & Shipbuilding Co. Ltd.,Tamano Works, Japan
  • DATE MFD:1987
  • TYPE:Reactor. Typically agitated, pressure rated vessel, with heating and or cooling abilities.
  • CAPACITY-GALLONS:1056 Gal.
  • SUPPORTS-QTY/TYPE/HIGH:Vert. on 4 legs
  • MAT'L CONSTRN-SHELL:304SS
  • MAT'L CONSTRN-JACKET:CS
  • PRESSURE-SHELL:560# DP @ 176°F (80°C), operating 427# @ 142°F. Hyd. 901#
  • PRESSURE-JACKET:100# DP @ 140°F (76.1°C), operating 42.6# @ 104°F, Hyd. 179#
  • SHELL-DIAMETER:4’9'' ID
  • SHELL-LENGTH:5’7” t-t
  • THICKNESSES-TOP/SH/BTM:Shell 1.062”, Heads 1.181”, Jacket 0.472”
  • CONNECTIONS-TOP/SH/BTM:Top: 6”, 4”, and agitator pad. Side: 20” manway w/davit. Bottom: 10” steady bearing, 2 @ 2”
  • JACKET-TYPE/ZONES/BTM HD:Conventional. 5'3''OD x 5'7''L Over straight side of shell only.
  • AGITATOR-HP/RPM:7.5HP through cyclo-gear & mechanical seal to 6” dia. shaft, w/steady bearing, top entering agitator w/anchor type scraper blade, 1.4 rpm.
  • PRIOR SERVICE:Unused. On original shipping skid. Designed as ‘Settler/Scraper, CoPolymer Project’
  • COMMENTS-ASME ETC:2:1 elliptical heads. All accessories still boxed.nAll welded construction. Fabricated to ASME sect.VIII (1983/85). ASME & N.Bd. stamped. All w/ 0.125” 304ss cladding.nO/all height from ground to over agitator motor 21’11/32”.
  • SHIPPING SIZE-W X H X L:5'W X 5'H X 10'L
  • APPROX. WEIGHT-LBS:28000#
