1269060 - REACTOR, 150 GAL, GL, FV25#INT, 2.5HP [1]

  • MFD.BY:Pfaudler
  • DATE MFD:1969
  • TYPE:Reactor. Typically agitated, pressure rated vessel, with heating and or cooling abilities.
  • CAPACITY-GALLONS:150 Gal. Nominal
  • SUPPORTS-QTY/TYPE/HIGH:Vert, on 4 legs.
  • MAT'L CONSTRN-SHELL:GL CS. Dark Blue chemical grade glassed body. Light blue Nucerite ceramic toughened glass top head , agitator and baffle.
  • MAT'L CONSTRN-JACKET:NA
  • PRESSURE-SHELL:FV25# @ 350°F.
  • PRESSURE-JACKET:NA
  • SHELL-DIAMETER:36" approx.
  • SHELL-LENGTH:30" T-T approx.
  • CONNECTIONS-TOP/SH/BTM:Top: 6" w/sight glass, 3"[2], 4". Bottom: 3" discharge with valve.

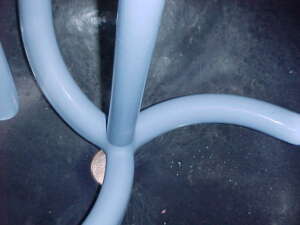

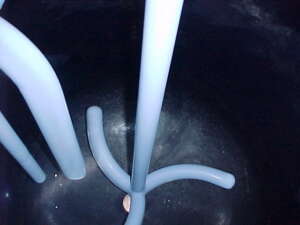

  • AGITATOR-HP/RPM:2.5HP motor 3/60/230-460V (new motor), 1780 rpm, via variable cone pulley belt drive to Pfaudler type 2.5TWV, 15:1 gear reducer rated 2.94HP, output ~40-100RPM variable. Triple retreat curve glassteel type blades. Double mechanical seal [SV.482700-AKC] w
  • BAFFLES-QTY/W X L:'H' style, approx.10" wide x 42"long.
  • PRIOR SERVICE:Appears undamaged, little used.
  • COMMENTS-ASME ETC:Domed top head with "C" clamp closure, removable. Dished bottom head. Glass condition appears undamaged good condition with no repairs visible. Top head and sgitator have good fire polish, body undetermined without top head removal.
  • SHIPPING SIZE-W X H X L:4'W X 7'H X 4'L
  • APPROX. WEIGHT-LBS:2500#
