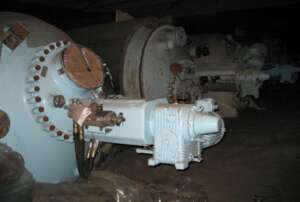

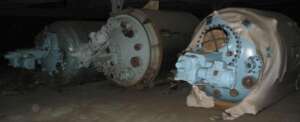

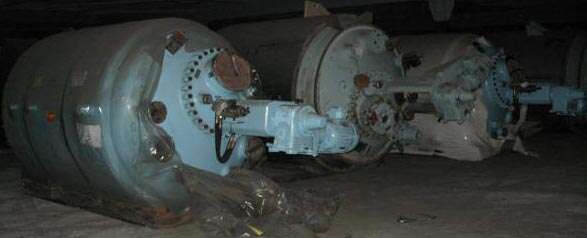

1270458 - REACTOR, 2000 GAL, GL, FV100#INT, 90#JKT, 15HP, UNUSED [2]

  • MFD.BY:Pfaudler
  • DATE MFD:1965 & 1988
  • TYPE:Reactor. Typically agitated, pressure rated vessel, with heating and or cooling abilities.
  • MODEL:RA2000
  • CAPACITY-GALLONS:2000 Gal.
  • SUPPORTS-QTY/TYPE/HIGH:Vertical. 8 Legs
  • MAT'L CONSTRN-SHELL:GL CS Glass lining #9115 or similar
  • MAT'L CONSTRN-JACKET:CS
  • PRESSURE-SHELL:FV100# @ 450°F ASME. Nat.Bd.
  • PRESSURE-JACKET:90# @ 450°F
  • SHELL-DIAMETER:78''ID
  • SHELL-LENGTH:90''t-t.
  • THICKNESSES-TOP/SH/BTM:Top head 3/4", shell 13/16", Bottom head 3/4". approx.
  • CONNECTIONS-TOP/SH/BTM:Top head; 36", 18", 6"(2), 4"(3), 3" (2). Bottom: 3"cbo approx.
  • JACKET-TYPE/ZONES/BTM HD:Conventional. CS. 2-zones. Full shell and bottom dished head. 82"OD approx.
  • AGITATOR-HP/RPM:15HP 5RW approx. installed with seal and lubricator.
  • BAFFLES-QTY/W X L:1
  • PRIOR SERVICE:UNUSED since reglassing. Stored indoors.
  • COMMENTS-ASME ETC:Ready to install. 2 lifting lugs each on top and bottom heads. Body: Visible damage to Glass? No. Patches? No. Plugs? No. Fire finish grade? close to 100% of original quality. Spark Test? Yes. Glass mapped? No. Reglass: Yes. Metal loss? None. Baffle/Agit
  • SHIPPING SIZE-W X H X L:7'6''W X 7'6''H X 17'L
  • APPROX. WEIGHT-LBS:14000#
