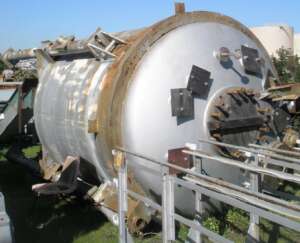

1271218 - REACTOR, 3000 GAL, 316SS, 150#INT, 35#JKT, 85#COIL, 20HP [1]

  • MFD.BY:Blaw Knox
  • DATE MFD:1942
  • TYPE:Reactor. Typically agitated, pressure rated vessel, with heating and or cooling abilities.
  • CAPACITY-GALLONS:3000 Gal. Total approx.
  • SUPPORTS-QTY/TYPE/HIGH:4 Legs. 6"dia pipe with footpads. 4ft ground clearance.
  • MAT'L CONSTRN-SHELL:316SS
  • MAT'L CONSTRN-JACKET:CS
  • PRESSURE-SHELL:150#
  • PRESSURE-JACKET:35#
  • SHELL-DIAMETER:8' OD
  • SHELL-LENGTH:10' s-s
  • THICKNESSES-TOP/SH/BTM:0.5'' shell and 0.375'' top/bottom approx. ASME F&D heads
  • CONNECTIONS-TOP/SH/BTM:Top: 18''MW w/cover, 18"center agitator flange, 6"[2] 4''[2],3''[4], 2'', 1". Shell: NA. Bottom head: 4" cbo.
  • JACKET-TYPE/ZONES/BTM HD:Conventional. Full Shell & bottom head.

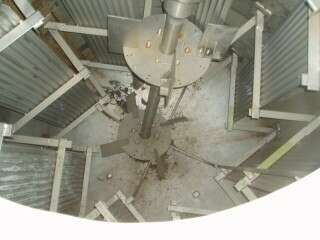

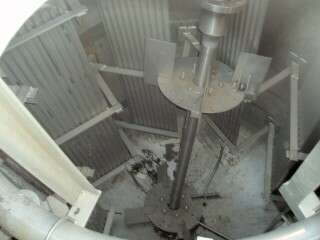

  • AGITATOR-HP/RPM:40HP Agitator drive and seals missing, replacement available extra. Includes 2 sets turbine blades on 3''dia shaft. Flanged coupling at top of shaft. Foot bearing.
  • BAFFLES-QTY/W X L:4
  • PRIOR SERVICE:Chemicals

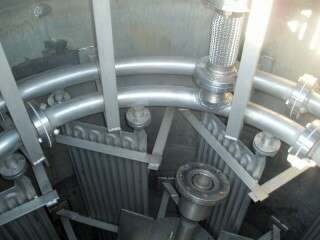

  • COMMENTS-ASME ETC:Platecoils act as baffles. Agitator drive removed,
  • SHIPPING SIZE-W X H X L:9'W X 9'H X 16'L
  • APPROX. WEIGHT-LBS:10000#
