- MFD.BY:GPE
- DATE MFD:2019
- TYPE:Reactor. Typically an agitated, pressure rated vessel, with heating and or cooling abilities
- MODEL:3000
- CAPACITY-GALLONS:3000 Gal.
- SUPPORTS-QTY/TYPE/HIGH:Vertical
- MAT'L CONSTRN-SHELL:316SS
- MAT'L CONSTRN-JACKET:304SS
- PRESSURE-SHELL:FV100# @ 500°F. ASME. Nat.Bd.
- PRESSURE-JACKET:125# @ 300°F. ASME. Nat.Bd.
- SHELL-DIAMETER:8' OD
- SHELL-LENGTH:8' straight side
- THICKNESSES-TOP/SH/BTM:0.4375'' shell and 0.625'' top/bottom heads.

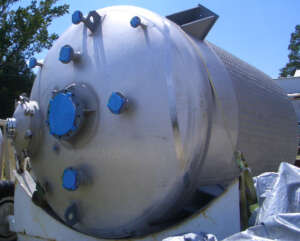

- CONNECTIONS-TOP/SH/BTM:Top: 18"MH, 12" center, 6"(2), 4"(2), 3"(2). Shell:NA. Bottom head: 4" cbo. All 150# lap joint flanges. Jkt. 1"(2)NPT per zone.

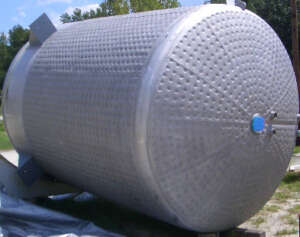

- JACKET-TYPE/ZONES/BTM HD:Dimple, 304S.S., 2-Zones, 1-Zone full shellside, and 1-Zone covering bottom head.
- AGITATOR-HP/RPM:0HP. Available to suit, up to 60HP, top entering, extra.
- BAFFLES-QTY/W X L:(4) equispaced, 0.25''thick X 8''wide X 8'long, 316SS
- PRIOR SERVICE:UNUSED. New fabricatioon built to suit
- COMMENTS-ASME ETC:Heads 80-10 flanged and dished. Supported by (4) CS 6' long pipe legs w/pads, 24" ground clearance.
- SHIPPING SIZE-W X H X L:8'6''W X 8'6''H X 15'L
- APPROX. WEIGHT-LBS:9000#
