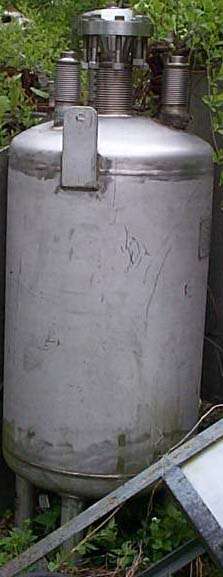

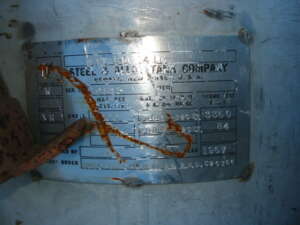

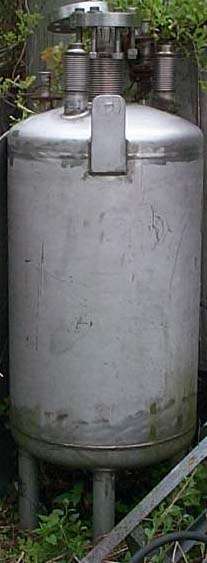

- MFD.BY:Steel & Alloy Tank
- DATE MFD:1967
- TYPE:Reactor. Typically agitated, pressure rated vessel, with heating and or cooling abilities.
- CAPACITY-GALLONS:50Gal.
- SUPPORTS-QTY/TYPE/HIGH:Vertical. On 4 legs welded to bottom head, 347SS pipe.
- MAT'L CONSTRN-SHELL:347SS
- MAT'L CONSTRN-JACKET:347SS
- PRESSURE-SHELL:2000#MAWP @ -320°F to +2000°F. Hyd. 3350# ASME. N.Bd.
- PRESSURE-JACKET:50#MAWP @ -320°F to +200°F. Hyd. 84#
- SHELL-DIAMETER:20"
- SHELL-LENGTH:32" t-t
- THICKNESSES-TOP/SH/BTM:Top 1.25" Shell 1.281" Bottom 1.25''
- CONNECTIONS-TOP/SH/BTM:Top: 3" [center for agitator], 1" [3], Sch 80 nozzle. Shell: NA. Bottom: NA. Jacket - 1" [3] 3000#NPT couplings.
- JACKET-TYPE/ZONES/BTM HD:Conventional Jkt, full shell, top & bottom heads, 1-zone, 26"OD, 0.3125'' thick.
- AGITATOR-HP/RPM:NA
- BAFFLES-QTY/W X L:NA
- PRIOR SERVICE:UNUSED
- COMMENTS-ASME ETC:Dished heads. 2 top lifting lugs.
- SHIPPING SIZE-W X H X L:2'W X 2'H X 4'L
- APPROX. WEIGHT-LBS:1000#
