- MFD.BY:DeDetreich
- DATE MFD:1980

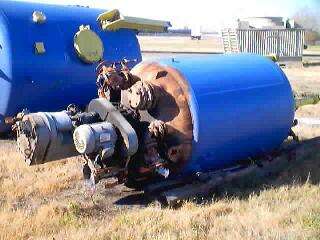

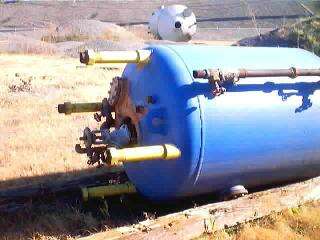

- TYPE:Reactor. Typically agitated, pressure rated vessel, with heating and or cooling abilities.
- MODEL:SA-500
- CAPACITY-GALLONS:500 Gal.
- SUPPORTS-QTY/TYPE/HIGH:Vert.
- MAT'L CONSTRN-SHELL:GL Glass lined CS
- MAT'L CONSTRN-JACKET:CS
- PRESSURE-SHELL:FV100# @ 550 Deg F ASME NB
- PRESSURE-JACKET:90# @ 550 Deg F ASME NB
- SHELL-DIAMETER:60" approx.
- SHELL-LENGTH:90" s-s approx.
- CONNECTIONS-TOP/SH/BTM:Top - 30" main cover with 14" x 18" manway, 8", 4 @ 4", 2 @ 2". Approx.nBottom - 4"
- JACKET-TYPE/ZONES/BTM HD:Conventional, 1-Zone
- AGITATOR-HP/RPM:5HP Philadelphia PTE-06, 40-125RPM, double mech seal, lubricator/cooler. Triple retreat curve impellor.
- BAFFLES-QTY/W X L:'H'
- COMMENTS-ASME ETC:Welded dished top & bottom heads. 4 Leg supports.
- SHIPPING SIZE-W X H X L:7'W X 7'H X 14'L
- APPROX. WEIGHT-LBS:13000#
