- MFD.BY:Metal Equipment Co
- DATE MFD:1980 approx.
- TYPE:Reactor. Agitated, pressure rated vessel, with heating/cooling abilities.
- CAPACITY-GALLONS:5000 Gal.
- SUPPORTS-QTY/TYPE/HIGH:Vertical. 4 pipe legs, 8" x 5' approx.
- MAT'L CONSTRN-SHELL:304LSS
- MAT'L CONSTRN-JACKET:CS
- PRESSURE-SHELL:FV15# @ 160Deg F ASME NB
- PRESSURE-JACKET:75# @ 160Deg F
- SHELL-DIAMETER:8'11''' ID
- SHELL-LENGTH:10'6'' T-T
- THICKNESSES-TOP/SH/BTM:0.375''

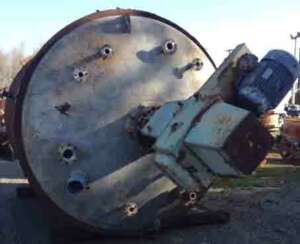

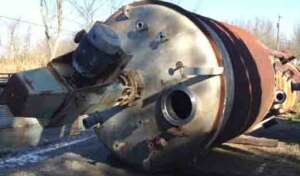

- CONNECTIONS-TOP/SH/BTM:Top: 18"MH, 12''Agit, 4", 3"[3], 2"[2], 1.5"[2] Btm: 3"CBO

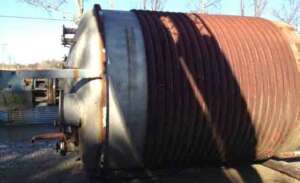

- JACKET-TYPE/ZONES/BTM HD:1/2 Pipe, CS, 1-Zone full shell & bottom head. Jacket needs repair.
- AGITATOR-HP/RPM:25HP top entering. Lightnin 85S25. 3/60/460V XP. 84rpm output. Double mechanical seals. Shaft & Blade set
- BAFFLES-QTY/W X L:Yes
- COMMENTS-ASME ETC:2 top lifting lugs
- SHIPPING SIZE-W X H X L:9'W X 9'H X 14'L
- APPROX. WEIGHT-LBS:20000#
