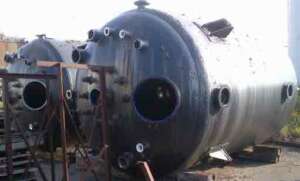

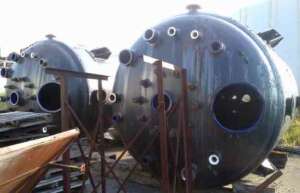

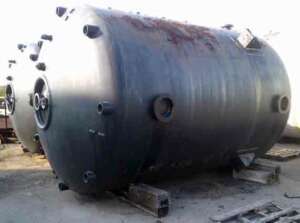

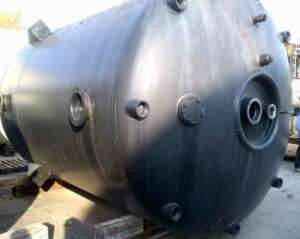

- MFD.BY:Pfaudler
- DATE MFD:2000
- TYPE:Reactor.
- MODEL:108 X 134 JCWVA
- CAPACITY-GALLONS:6000 Gal.
- SUPPORTS-QTY/TYPE/HIGH:Vert. Lugs
- MAT'L CONSTRN-SHELL:GL glass lined
- MAT'L CONSTRN-JACKET:CS
- PRESSURE-SHELL:FV15# DP @ 450°F. ASME. N.Bd.
- PRESSURE-JACKET:90# DP @ 450°F ASME. N.Bd. [approx.]
- SHELL-DIAMETER:9' approx
- SHELL-LENGTH:11'2'' t-t approx.
- THICKNESSES-TOP/SH/BTM:1'' approx.
- CONNECTIONS-TOP/SH/BTM:Top: 20"MW, 12"[agit], 8"[2], 6", 4"[4] Bottom:6" approx. CBO. Approx.
- JACKET-TYPE/ZONES/BTM HD:Conventional, CS shell and full bottom head.
- AGITATOR-HP/RPM:NA
- BAFFLES-QTY/W X L:NA
- PRIOR SERVICE:Chemical.
- COMMENTS-ASME ETC:Glass condition appears good, fire polish finish. No visible damage. No internals.
- SHIPPING SIZE-W X H X L:10'W X 10'H X 20'L
- APPROX. WEIGHT-LBS:40000#
