- MFD.BY:GPE
- DATE MFD:2019

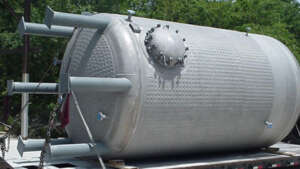

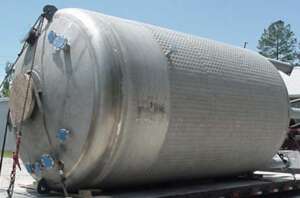

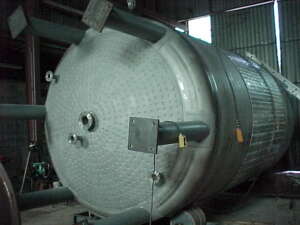

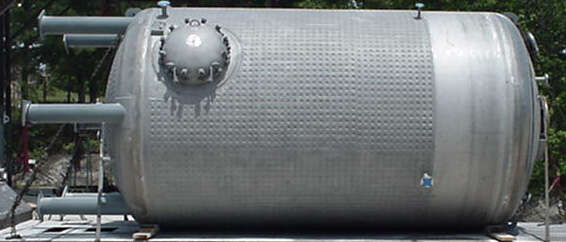

- TYPE:Reactor. Typically an agitated, pressure rated vessel, with heating and or cooling abilities
- MODEL:8000
- CAPACITY-GALLONS:8000 Gal. Nominal, 8,500Gal. Total.
- SUPPORTS-QTY/TYPE/HIGH:Vertical
- MAT'L CONSTRN-SHELL:316LSS solid
- MAT'L CONSTRN-JACKET:304SS
- PRESSURE-SHELL:25# @ 300°F. D.P. ASME Stamped
- PRESSURE-JACKET:50# @ 300°F. D.P. ASME Stamped
- SHELL-DIAMETER:9' 6''OD
- SHELL-LENGTH:14' straight side
- THICKNESSES-TOP/SH/BTM:0.375'' shell and 0.4375'' top/bottom heads. Approx. (Includes 0.2167'' corrosion allowance)
- CONNECTIONS-TOP/SH/BTM:Top: 8"center, 8", 4"(3), 3", 2"(2), 1", 1/2". Shell: 22"MH, 1", 1/2", Jkt. 3"(2) per zone, 1". Bottom: 4" cbo. All 150# RFSO flanges.
- JACKET-TYPE/ZONES/BTM HD:½-pipe coil jacket, 10Ga. 304SS, 36 turns, 1-Zone full shellside (1-Zone covering bottom head extra $6,210)
- AGITATOR-HP/RPM:0HP. Available to suit, up to 60HP, top entering, extra.
- BAFFLES-QTY/W X L:(4) equispaced, 0.25''thick X 10''wide X 12'long. 316LSS
- PRIOR SERVICE:UNUSED New fabrication, built to suit.
- COMMENTS-ASME ETC:Heads ASME F&D (flanged and dished). Supported by (6) CS legs equispaced giving 4' ground clearance. Delivery 12-14weeks.
- SHIPPING SIZE-W X H X L:10'W X 10'H X 22'L
- APPROX. WEIGHT-LBS:17000#
