- MFD.BY:Nooter
- DATE MFD:1963

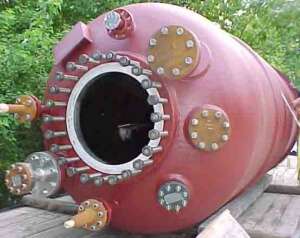

- TYPE:Reactor. Typically agitated, pressure rated vessel, with heating and or cooling abilities.
- CAPACITY-GALLONS:900 Gal. total, 850 Gal. Working to top tangent line, approx.
- SUPPORTS-QTY/TYPE/HIGH:Vert. on Skirt, 2' ground clearance.
- MAT'L CONSTRN-SHELL:Titanium lined, B265 Gr.3.[Shell] Gr.2 [Heads] Gr.I [nozzles], C.S. backing.
- MAT'L CONSTRN-JACKET:CS
- PRESSURE-SHELL:550# MAWP @ 600°F, Hyd. 825#. ASME. N.Bd. X-rayed.
- PRESSURE-JACKET:150# @ 600°F, Hyd. 825#.
- SHELL-DIAMETER:54 ''OD
- SHELL-LENGTH:7' t-t
- THICKNESSES-TOP/SH/BTM:Shell 1", Heads 0.852". Titanium lining, 11 ga. (0.120”)
- CONNECTIONS-TOP/SH/BTM:Top: 20" center (w/blind), 2 @ 4" (coil connections), 3" pad, 2", 2 @ 1½", 1".nSide: Approx. 12 @ 1/8" dia. weep-hole nozzles on 2' centers over liner butt welds.nBottom: 3" c.b.o., 3", 2 @ 1½".
- JACKET-TYPE/ZONES/BTM HD:1/2 -Pipe. 2-zones. Bottom head & lower 1/2 shell side
- AGITATOR-HP/RPM:20HP 3/60/480v, 1765rpm. Lightnin, 84RPM. 20:1 reduction. 4" x 12" output shaft w/flanged coupling. Mechanical seals, Hast.C. Output shaft Hast.C w/flanged coupling. Shaft/Impellors available extra, built to suit.
- BAFFLES-QTY/W X L:3 @ 3/16" thick x 4½" wide approx., Ti B265 Gr.3
- PRIOR SERVICE:Chemical, oil based.
- COMMENTS-ASME ETC:Dished heads. 10'1½" overall height approx.. Wt. 7675# Carbon Steel, 1060# Titanium. No corrosion or erosion visible internally. Excellent condition, refurbished & hydrotested in 2001, unused since.
- SHIPPING SIZE-W X H X L:5'W X 5'H X 11'L
- APPROX. WEIGHT-LBS:8735#
