TYPE:Regenerative Thermal Oxidizer [RTO]. Air pollution control system, compounds converted to water vapor and CO2 by thermal destruction in a closed system. Typically99% destruction efficiency, 97% heat recovery efficiency, via storage of heat by multiple de
MODEL:CS-259-95 CleanSwitch. 2 chambers.
CAPACITY :25000CFM total air flow. Inlet 3-400Deg F. 1500°F operating approx. Max Solvent Load: 700 lbs/hr (based on 15,000BTU/Lb) approx.
MAT'LS CONSTRN:CS, Refractory lined.
PRIOR SERVICE:Last svc 16600 SCFM Solvents, VOC's. Design typical 1 second retention @ 1500Deg F to oxidize any VOC. Organic solvents, hydrocarbons and odors converted to water vapor and carbon dioxide via thermal oxidation.[typical]. Shut down with plant in 2016 [tbc]

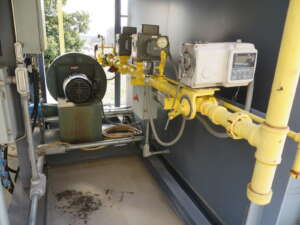

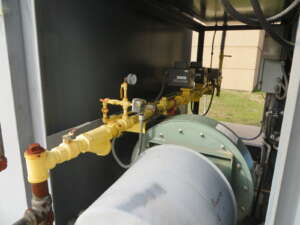

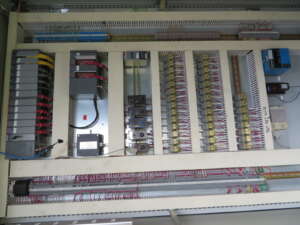

COMMENTS:Complete system as installed, Includes Control room, modular.nEquipment Description:nReaction chambern Ceramic module insulation. Thickness 8-10 inches.n AB Panview 600, Touch screen operator interfacenTwo poppet valvesn Interconnecting ductwork. In
