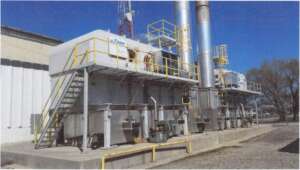

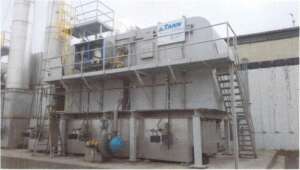

TYPE:Regenerative Thermal Oxidizer [RTO]. Air pollution control system, compounds converted to water vapor and CO2 by thermal destruction in a closed system. Typically99% destruction efficiency, 97% heat recovery efficiency, via storage of heat by multiple de
MODEL:TR2090C. 2 chambers.
CAPACITY :20000CFM total air flow. Inlet 300Deg F. 1500°F operating approx. Max Solvent Load: 700 lbs/hr (based on 15,000BTU/Lb)
MAT'LS CONSTRN:CS, Refractory lined.
PRIOR SERVICE:Design typical 1 second retention @ 1500Deg F to oxidize any VOC. Organic solvents, hydrocarbons and odors converted to water vapor and carbon dioxide via thermal oxidation.[typical]
COMMENTS:The RTO was inspected and maintained annually by OEM service personnel, shut down late 2017, operational at that time.nFan 48"dia inlet, motor 200HP, 3/60/460v, 225FLA. Burner: Maxon Kinemax (4MM Btu/Hr). Combustion Blower 3/60/460v 14FLA. RTO Main Pane
