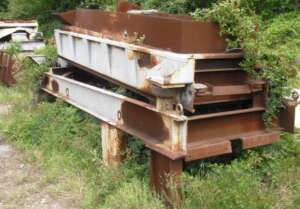

1270860 - SCREEN, VIBRATING, 40'' X 120’', CS, 4-DECK, ROTEX, 54A [1]

  • MFD.BY:Rotex
  • DATE MFD:1980 approx.
  • TYPE:Vibrating deck screening machine. Separation is accomplished by size grading of a product as it passes through, or is retained on , a wire mesh screen with the required opening size to suit the process. The upper screening assembly components are isolated
  • MODEL:54A
  • SIZE:40''W X 120''L
  • MAT'LS.CONSTRN-DECK(S):CS
  • MAT'LS.-SCREEN FRAME(S):Wood frames
  • DECKS-NUMBER:4

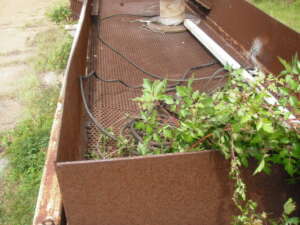

  • SCREEN MESH/SIZE(S):Various size screens available
  • SELF CLEANING DECK(S):Available, not installed.
  • INLET:6"
  • DISCHARGE(S):6"
  • DRIVEN BY:5HP, 3/60/230-460V TEFC
  • DRIVEN VIA:Gearbox
  • PRIOR SVC:Rubber granules.
  • COMMENTS:On heavy duty frame. 33.3 SF/deck.
  • SHIPPING SIZE-W X H X L:6'W X 5'H X 17'L
  • APPROX. WEIGHT-LBS:6700#
  • QUANTITY:1
