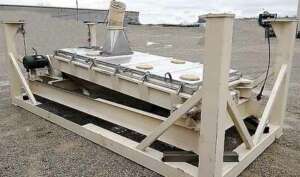

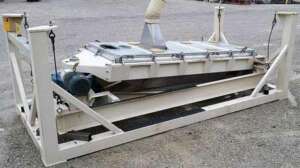

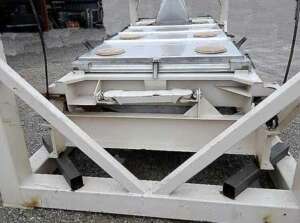

TYPE:Vibrating deck screening machine. Separation is accomplished by size grading of a product as it passes through, or is retained on , a wire mesh screen with the required opening size to suit the process. The upper screening assembly components are isolated
MODEL:532A-AL-SS
SIZE:60''W X 120''L
MAT'LS.CONSTRN-DECK(S):SS
MAT'LS.-SCREEN FRAME(S):AL & SS
DECKS-NUMBER:2 [2 SINGLE separations, feed is independently fed in parallel, split into overlying identical single decks and combine at each discharge port, producing an over & under size cut, 2-cuts only.]
SCREEN MESH/SIZE(S):Various size screens available 6-40 mesh.
SELF CLEANING DECK(S):Yes.
INLET:6'' dia.approx.
DISCHARGE(S):6'' dia approx.
DRIVEN BY:7.5HP 3/60/230-460V. 228RPM.
DRIVEN VIA:Eccentric reducer, 3" orbital motion. Major Wt 410lbs. Minor Wt 210lbs
CAPACITY:20000PPH
PRIOR SVC:Plastics
COMMENTS:100SF. surface area, 50SF per deck. Feed is independently fed in parallel, split into overlying identical single decks and combine at each discharge port, producing an over & under size cut, 2-cuts only. Frame mdl. 532A AL/SS top wt 410Lb, lower wt 211Lb.
