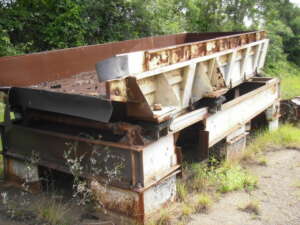

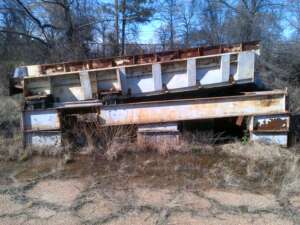

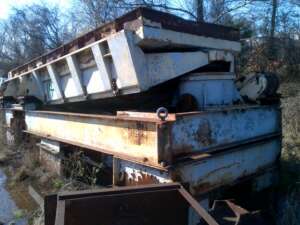

TYPE:Vibrating deck screening machine. Separation is accomplished by size grading of a product as it passes through, or is retained on , a wire mesh screen with the required opening size to suit the process. The upper screening assembly components are isolated
MODEL:72CS
SIZE:80''W X 180''L
MAT'LS.CONSTRN-DECK(S):CS
MAT'LS.-SCREEN FRAME(S):Wood, CS, SS, AL, available at extra cost
DECKS-NUMBER:2

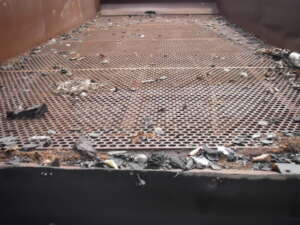

SCREEN MESH/SIZE(S):6-40 mesh screens as required.

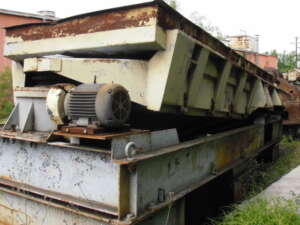

DRIVEN VIA:Eccentric reducer. Reducer 225rpm output, 3-1/2" dia motion.
CAPACITY:40TPH chips
PRIOR SVC:Rubber granules
COMMENTS:Heavy Duty Frame. 100SF. surface area per deck. General refurbishing to return to original design available extra. [Wood frame screens, ball deck, top cover, Carbon pads, Deck and discharge rework.] Dry test run prior to shipment. Priced as-is.nCurrently
