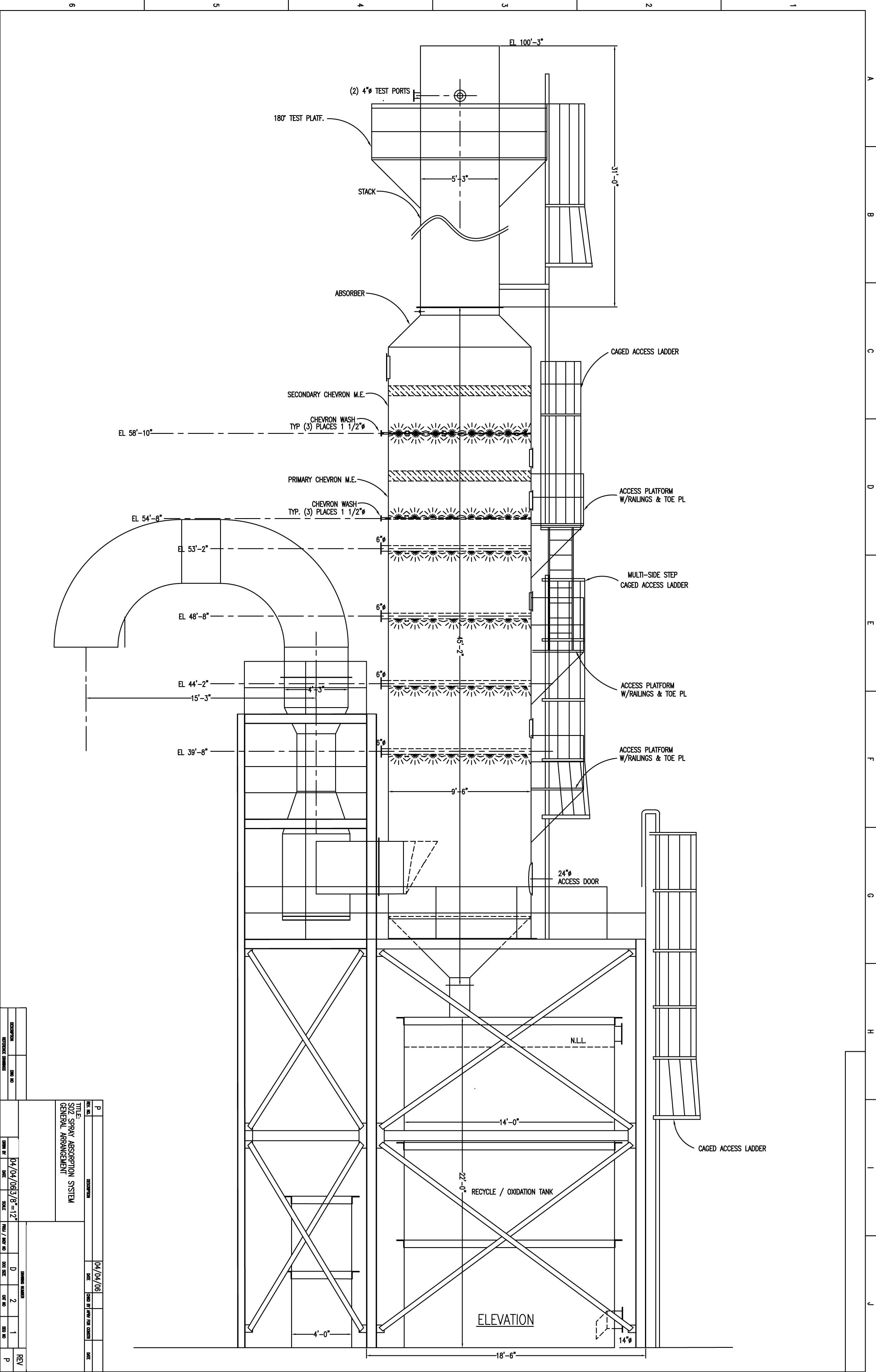

1272098 - SCRUBBER, 56000CFM, 9'6'' X 45', 316SS, AIRPOL, WET MIST [1]

  • MFD.BY:Innovative Scrubber Solutions.
  • DATE MFD:2006
  • TYPE:Wet mist scrubber
  • SIZE-DIA:9'6''
  • SIZE-LENGTH:45'
  • MAT'LS CONSTRN:316SS
  • THICKNESS:3/16" approx
  • TOP HEAD TYPE:Conical, approx. 4’ high.
  • INTERNALS:4 @ 6" dia, 4ft apart, equispaced liquid chemical treatment spray manifolds, 4ft below lower of 2 @ Chevron Mist Eliminators, 4ft apart in top 6 ft of body & with wash manifolds 18" below each M.E.
  • SUPPORTED BY:I-beam legs, 4 approx. 6'long
  • CONN'S-AIR INLET:48" dia. Tangential entry side nozzle in lower body, air/solids inlet. Access door.
  • CONN'S-AIR DISCH:63" dia. top center nozzle, air outlet/ 35' Stack.
  • CONN'S.-SOLIDS OUTLET:12" CBO
  • PRIOR SERVICE:Ag products de-odorizer. SO2 Spray Absorption System.
  • COMMENTS:Used 150HP, 450gpm Warman pumps [1 of 2 available] to pump Calcium Carbonate solution from adjacent 12' X 60' CS dry storage silo into scrubber.nRecycle tank 14'dia x 22' high flat bottom, mounted under scrubber for liquids discharge. Support structure a
  • SHIPPING SIZE-W X H X L:10' W X 10'H X 65'L
  • APPROX. WEIGHT-LBS:24000#
  • QUANTITY:1
