- MFD.BY:General Electric
- DATE MFD:1950 approx
- TYPE:Steam Turbine, propulsion unit.
- RATED-HP:14500
- TURBINE-TYPE:Non-Condensing

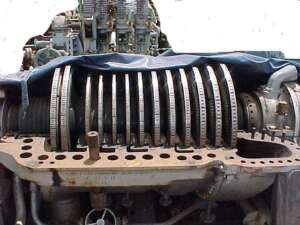

- No.STAGES:12. 1-stage Curtis, 11-stage, single row.
- EXTRACTION:Yes. Flange 12.5"OD x 6"ID X 2"thick, 10-5/8" Bolt CTC
- INLET STEAM:525psig @ 825Deg F. Double entry flange, 14.25"OD x 6.75"ID, 2-3/8"thick. 11-7/8"Bolt CTC, 12Bolt Hole.
- EXHAUST STEAM:40psig @ 386Deg F. Exhaust Flange, 30"OD x 24"ID, 1" thick flange. 28"Bolt CTC, 28Bolt
- GOVERNOR:5 valve Control Cam operated throttle.
- ROTATION:CW & CCW, one of each available
- PRIOR SERVICE:UNUSED
- COMMENTS:Cancelled ship project. Port & Starboard engines. Thrust Brg. 6 Shoe, 32.64 Sq.In., 10,000LB Thrust Load. Coupling 16.5"OD x 2-1/16" thick x 14.25" Bolt CTC, 12Bolt hole.
- SHIPPING SIZE-W X H X L:6'W X 6'H X 16'L
- APPROX. WEIGHT-LBS:20275#
- QUANTITY:2
