- MFD.BY:Westinghouse
- DATE MFD:1950 approx

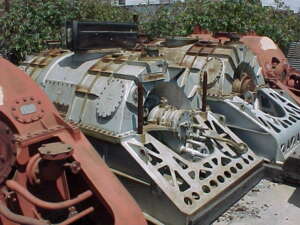

- TYPE:Steam Turbine, propulsion unit.
- MODEL:DD445
- RATED-HP:15400
- TURBINE-TYPE:Condensing
- No.STAGES:9. Rotor is a solid forging, 9-stage Ahead, Reaction, Double-Flow
- INLET STEAM:37.2psig @ 387Deg F. [Upward pointing] 24"ID x 30"OD, 1.5"thick.
- EXHAUST STEAM:2.55"Hg Absolute [Downward pointing] Rectangular Exhaust, 9'6-1/2" x 5'8", 1-1/2" thick flange.
- GOVERNOR:NA [Requires Woodward or similar & throttle trip (24"ID), originally controlled by exhaust from HP turbine]
- ROTATION:CW from Governor end. [CCW viewed from coupling ]
- PRIOR SERVICE:UNUSED
- COMMENTS:Cancelled US Navy Destroyer project. Port engine. Unit equipped for Reverse operation.
- SHIPPING SIZE-W X H X L:6'W X 6'H X 16'L
- APPROX. WEIGHT-LBS:36115#
- QUANTITY:2
