- MFD.BY:Old Dominion Fab
- DATE MFD:1990

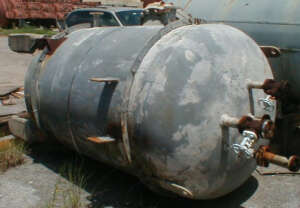

- TYPE:Pressure vessel
- CAPACITY-GALLONS:1000 Gal.
- MAT'L CONSTRN-SHELL:CS SA516-70
- ORIENTATION:Vert.
- PRESSURE-SHELL:FV136 MAWP, FV100 DP @ 400°F Hyd 306#
- CERTIFICATION-CODE/STD/NBD:ASME. N.Bd.
- SHELL-DIAMETER:54''ID
- SHELL-LENGTH:6'6'' t-t
- SUPPORTS-QTY/TYPE/HIGH:4 legs, 9" ground clearance
- THICKNESSES-TOP HEAD:10.5''
- THICKNESSES-SHELL:0.375'' 0.125''CA.
- THICKNESSES-BOTTOM HEAD:0.5''
- CONNECTIONS-TOP HEAD:1"[3]
- CONNECTIONS-SHELL:24"MW, 6", 2"[3], 1-1/2", 1"
- CONNECTIONS-BOTTOM HEAD:6'' CBO
- PRIOR SERVICE:High Pressure Depropanizer Condensate Pot
- SHIPPING SIZE-W X H X L:5'W X 5'H X 10'L
- APPROX. WEIGHT-LBS:3900#
